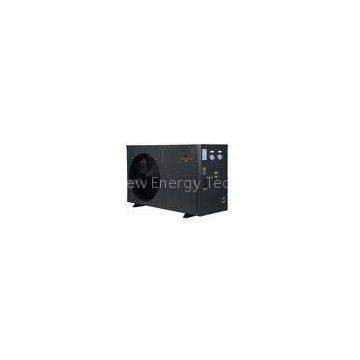

Household Heating And Hot Water High Cop Heat Pump With Water Heater Boiler 7.2KW EN14511

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Power World		Place of Origin	China
Model Number	#MG-020-KFXRS

Delivery Time:20 days
Certification:CE, ROHS, EN14511

7.2KW? EN14511 High Cop Heat Pump Water Heater Boiler

For Household Heating And Hot Water

Specifications of Power World Living Hot Water Heating Boiler:

Model No.	#MG-020-KFXRS	#MG-030A-KFXRS	#MG-030B-KFXRS	#MG-050-KFXRS
Heating Capacity(kW)	7.8	11	12	18.8
Heating Input Power(kW)	1.78	2.52	2.78	4.42
COP(Coefficient of Performance)	4.38	4.37	4.32	4.25
Voltage	220V/50Hz	220V/50Hz	380V/50Hz	380V/50Hz
Rated Current(A)	14	14	7.5	13
Advised cable	3*2.5mm2	3*2.5mm2	32.5mm2+21.5mm2	34mm2+22.5mm2
IP Grade (Level of protection)	I	I	I	I
Level of protection	IPX4	IPX4	IPX4	IPX4
Working Condition(℃)	-25 to 43	-25 to 43	-25 to 43	-25 to 43
Rated Water Temp.(℃)	55	55	55	55
Max Water Temp.(℃)	60	60	60	60
Hot Water Capacity(L/H)	112	158	172	269
Water Connection Size(mm)	DN25	DN25	DN25	DN25
Compressor	Mitsubishu	Copeland	Copeland	Copeland
Thermostastic Expansion Valve	Danfoss	Danfoss	Danfoss	Danfoss
Air Flow	Side air-discharge	Side air-discharge	Side air-discharge	Side air-discharge
Condenser	Efficient Tank	Efficient Tank	Efficient Tank	Efficient Tank
Refrigerator	R410A	R407C	R407C	R407C
Noise(dB(A))	≤55	≤55	≤55	≤58
Unit Size(WDH)	1150490710	11104901260	11104901260	11104901260
N.W./G.W.(KG)	100/106	110/120	120/130	145/155

Description of Power World Living Hot Water Heating Boiler:

1) EVI compressor special designed for high COP (Coefficient of Performance): 4.5 even in bad weather condiction or area.????????????????

2) Base frame and externel panels made of galvanized powder coated steel???????????????????

3) Water exchanger equipped with high efficiency tube in shell heat exchanger???????????????????

4) Reliable comp
