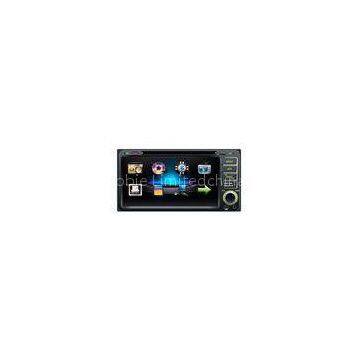

High Resolution IR FM Double Din Gps Navigation Systems For Cars With Bluetooth

Brand Name	ACO		Place of Origin	China
Model Number	6916A

Delivery Time:8-12 working days
Certification:CE FCC ROHS

DVD Stereo Microphone Universal Car Multimedia Navigation System Bluetooth FM Radio IR

Product Details

Automatic identification of PAL,NTSC,SECAM systems Multi-function IR remote control iPod function Detecting radar, rearview mirror available Compatible with multi-languages & Subtitle? 16: 9 high resolution 800x480, 6.95 inch double?din car DVD player with digital touchscreen Steering wheel control Compatibility with DVD,VCD,CD, MP4,MP3,CD-RRW etc Built-in Bluetooth/USB,SD interface/DVD/FM/AM/TV/AV/Microphone/RDS(Optional) function Stable electronic-anti-shock and mechanical-anti-shock 2 channel AV output,very easy to connect with external AV device and compose a perfect car AV ?entertainment system GPS function(Optional) 4x45W High power output . AUX input Hand break detecting function,which switches off the TFT display automatically to ensure the safety during driving Auto detect the small light switch function,if the small light is on,the light of keys will be on and the TFT screen will switch to night mode automatically Auto switch to the backing car display status when backing a car,if external camera available the car rear status can be seen on the screen in real time to ensure the safety 1 channels TV antenna input,receive good and stable TV program in the car

Accessory

1. GPS Antena ( add as request ) ?
2. DEMO map (can be choosed?)?
3. USB Cable (add as?request)
4.?Touch pen
5. Remote Control
6.?Power Cable

7. Manuals

Optional Hardware

1. TF/SD Memory Card ?( add as request )
2. iPod Cable ( add as request )
3. RDS ( add as request?)

Display Touch	6.95\"
Mechanism	36.4H*141.7W*127.7L
MOTOR	SFF-050SH-11180
Bareheaded	SF-HD860
Kernel module	75*38MM
BT Modulator	RDX5850
BT MIC	￠4X2.0MM -40dB
Radio Turner	SI4730
ARM IC/ARM	MASTAR MSB2531
MCU? IC	ST8AH6189T
RAM IC	DDR3 128MB
ROM IC	128MB
Power IC	TDA7388
Decoder IC	SPHE8202TQ
Audio D/A IC	ZL3459
LVDS IC /LVDS	T113
Main Power IC	YS2013
Maximum output power	4*45W?
Signal to Noise Ratio	60dB
Degree of distortion	0.40%
FM Radio Frequency	87.5 - 108.0Mhz / Japan : 76.0-108 .0 MHZ / Russian : 65.0-108MHZ ? add as request
Down sensitivity	16dB
Practical sensitivity	30dB
RDS	add as request
TF/SD card	32G
Video input	3 Route
Video output	2 Route
Audio input	2 Route
Audio output	4 Route
Main Board thickness	Board Thickness : 1.6MM ; Plating Thickness : 34UM
KB Board /KB	Board Thickness : 1.2MM ; Plating Thickness : 34UM
Heat Release	Cast Aluminium
Plastic panel	Material : 777D + BC ; Thermostability : 80℃
