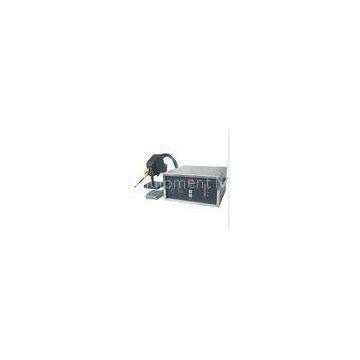

Ultra High Frequency Induction Heating Machine For Welding

6KW Small Size Ultrahigh Frequency Induction Heating Equipment For Welding

Quick Detail:

Specification

Major Features

GYH?super?frequency?heating?equipment?has?such?features?as?high?frequency?(the?minimum?heated?welding?diameter?is?φ0.1mm),?small?size,?light?weight,?low?failure?rate?and?conservation?of?energy?(it?can?save?the?power?by?70%?as?compared?with?glass-ceramic?vacuum?tube?high?frequency?heating?equipments).?Furthermore,?it?can?ensure?the?solid?welding?point?which?is?pleasing?and?delicate?in?appearance,?integral?geometric?configuration,?perfect?surface?grain,?complete?crystal?structure?of?internal?metal?part,?limited?annealing?range?and?elimination?of?obvious?weld?knot.?It?is?widely?applied?to?the?welding?of?couplers?and?inserts?used?in?metal?glass?manufacturing?as?well?as?electric?appliance?and?electronic?industries,?non-contact?welding?of?internal?parts?of?small-size?relays,?high-pressure?refrigerating?parts,?headwear?decorations,?metal?ornamental?articles?and?art?wares.

Major Scope of Application

?Welding?of?big?and?small?gears?of?hard?alloy?saw?blade;?

?Welding?and?annealing?of?spectacle?frame?and?fittings

Welding?of?jewelries,?clock?and?watch;

Electric?industry?(tin?and?silver?soldering?of?fine?wire,?various?electronic?elements);

Electromechanical?industry?(silver?and?braze?welding?of?fine?metal?joints?as?well?as?quench?tempering?for?mini?motor?shaft);?

Wire?material?industry?(annealing?of?wire?material?and?sheet?band);?

Welding?of?cutting?tools?as?well?as?tempering?for?paper?cutter?and?shoe?knife?blade;?

?Toy?industry?(tempering?for?wind?spring?and?thin?metal?sheet)

Operating Principle

Frequency conversion electromagnetic induction heating or induction heating for short is a method for heating metal materials by converting power frequency power supply into that of specific range based on the principle of electromagnetic induction. It is mainly applicable to the metal hot working, heat treatment, welding and melting. This type of heating technique is also applicable to packing industry (such as sealing of aluminum foil used in medicine and food industry), semiconductor material (such as extruded monocrystalline silicon and heated affixing metal parts for auto glass).?

Basic components of induction heating system include induction coil, AC power source and work pieces. Induction coil can be fabricated into different shapes as per different heated objects. The coil is connected with the power source providing alternating current for coil. The alternating current possessed by the coil can create a alternating magnetic field passing through the work pieces to produce eddy flow as required by heating.

Advantages of Induction Heating Equipment

1. Fast heating: the minimum rate of heating is less than 1 second (rate of heating is available for adjustment and control).

2. Wide coverage of heating: it can be used to heat various metal parts (replace removable induction coil as per different operating switches).

3. Easy installation: it can be used once it is connected with power source, induction coil as well
