Home > Products > New product > Dia.3.4mm Plano-concave Cylindrical Lens

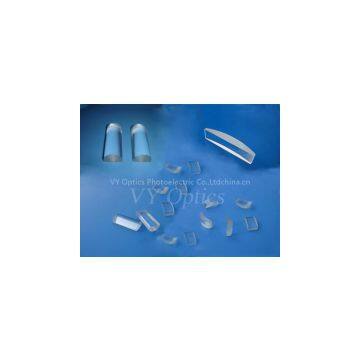

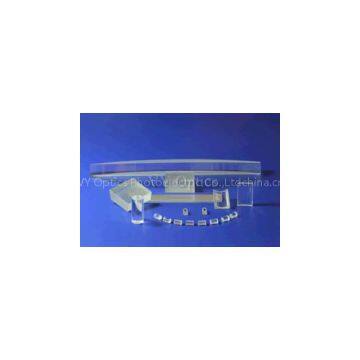

Dia.3.4mm Plano-concave Cylindrical Lens
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | vy | Place of Origin | China | |
| Model Number | vy002 |
Product Description
Cylindrical lens is used to correct astigmatism in the eye, and, in rangefinders, to produce astigmatism, stretching a point of light into a line.They are available in either plano concave or plano convex configurations. Plano-Concave Cylindrical lenses have a negative focal length and are used for image reduction or to spread light. Plano-Convex Cylindrical lenses have a positive focal length, which makes them ideal for collecting and focusing light for many imaging applications.
Plano-convex cylindrical lens,plano-concave cylindrical lens,bi-convex cylindrical lens,bi-concave cylindrical lens,meniscus cylindrical lens,long cylindrical lens,special cylindrical lens etc..
Specifiction of our cylinderical lens as follow:
*Material BK7 or other optical materials
*Dimension Tolerance +0.0 -- -0.1mm
*Center Thickness 0.1mm
*Focal Length Tolerance1%
*Surface Quality:20/10
*Surface Figure lambda/2 at 633nm on plano side
*Clear Aperture >90%
*Chamfer 0.25mm at 45 degree typical
*Coating Optional
