Heavy Duty Cantilever Racking System For Steel , Lumber , Furniture , Pipe Storage

Heavy Duty Cantilever Racking System For Steel , Lumber , Furniture , Pipe Storage

Quick Details:

Description:

Cantilever Racking is designed to maximize your storage space while giving you easy access to your products. With Cantilever racking you can work by the safest storage practices. The Cantilever racking system is ideal for storing your long, irregular and mixed loads.

We offer a complete range of cantilever racking systems for the storage of long goods. For loads varying from 50 to 1000 kg per cantilever arm and for most types of long goods an optimized storage solution can be provided.

Typical long goods are metal and plastic tubes, wooden boards, hot rolled steel profiles. The construction of our cantilever racking is made of hot rolled steel profiles (HEA or IPE) in various sizes. The standard finish is a high quality epoxy polyester powder coating for inside applications or a hot galvanized coating for outside applications.

ORBIT line of cantilever storage racks are an ideal storage solution in many situations. These flexible and compact industrial storage rack designs help you lower handling time and costs.

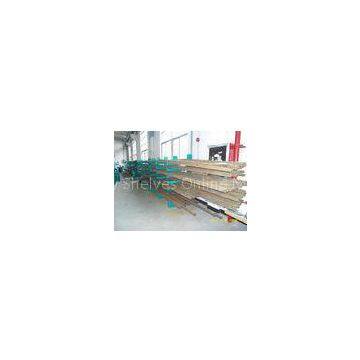

Cantilever racking is ideal for the safe and organized storage of long and heavy loads. They are also ideal systems for storing steel bars, pipes, tubes, furniture and packs of timber. Some of them are also suitable for storing boards, metal sheets or large and valuable items such as crates or boxes and even white goods.

The products are stored horizontally on the arms and handled either manually or by using forklift truck or cranes. The best solutions provide a clear layout with easy access, as they do away with the need for vertical uprights at the front of the racking and use the minimum of space, all at low cost.

Cantilever racking is available in both single sided and double sided configurations. The double sided rack provides maximum storage capacity on a single central column while the single sided rack is designed to fit flush against a wall.

Being modular in nature, additional arms, uprights and braces may be added as storage requirements change.

Technical Characteristics of Cantilever Racking:

The column and foot are welded or bolted together

The cantilever racks can be used single or double sided

Column heights of up to 9 meter, perforated every 100mm (or 50mm optional)

The cantilever racking is suitable for forklift and crane handling

Ground guidance can be provided as an option

The arms are bolted and adjustable per 100mm, corresponding with the sizes of the stored goods

Arm lengths of our Cantilever racking range from 600 to 2500mm

Designing factors:

What types of cantilever racking you need -- double sided or single sided?

What’s the rack size W×D×H? -- most popular is W=1200mm and extra bay can be extended, D=1000mm or 2000mm, H=3600mm

How many arm levels you want-- most popular is 3 or 4 levels

Load carry capacity per arm-- most popular is 300 or 500KG

If possible send us your warehouse layout and tell us your requirements so that we can set up designing for your
