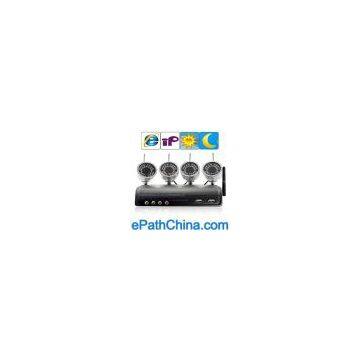

Surveillance IP Camera Kits with 2.4GHz Wireless Receiver and 4 IR Camera

Place of Origin	China

Specifications:
Function: Waterproof IP Camera Kits support Night Vision
Material: Waterproof aircraft grade aluminum
Horizontal Definition: 380 TV Line
Image Sensor: 1/3 inch CMOS image Sensor
TV System:PAl/NTSC
Validity Pixel:
- PAl:628(H) x 582(V)
- NTSC: 510(H) x 492(V)
With 4 mini waterproof IR wireless camera and one 2.4GHz 4 channel wireless IP camera Server. Just connecting an ethernet cable and a live video stream of all 4 wireless cameras would be made available on the internet, only need to own the IP address of the wireless server, letting you view it online at any time and any place.
Support motion detection, images can be sent out through alarm e-mails
The Receivers Specification:
Image Resolution:
- PAL: D1(704 x 576), CIF(352 x 288), QCIF(176 x 144)
- NTSC: VGA(640 x 480), QVGA(320 x 240), QQVGA(160 x 120)
Compression Standard: M-JPEG standard
The Video Frame Rate:
- PAL: 25 FPS
- NTSC: 30 FPS
Wire Network: RJ-45 10/100M accept Ethernet
The Connectors in wireless Condition:
- Video: 2.4GHz 4 channel wireless
The connectors in wired condition:
- Video: 3 channel
- Audio: 3 channel for single AV and Mono
Motion Detection: User could set alarm area and sensibility
USB Port: 2 channels USB2.0 port
Security password setting: administer, monitor, scrutiny
The Camera Specification:
Minimum Illumination: 0Lux
Nightvision: With IR LEDs, security with automatic night vision switch, the night view distance can up to be 15 meters
Waterproof: YES
Four Transmission Frequency:
- CH 1: 2414MHz
- CH 2: 2432MHz
- CH 3: 2450MHz
- CH 4: 2468MHz
Transmission Signal: Audio and Video
Transmission Distance:
- Outdoor: 300 ~ 500m with out any obstacles
- Indoors: About 100 meters
Scanning Frequency:
- Horizontal Scanning Frequency: 15.625KHz (PAL), 15.734KHz(NTSC)
- Vertical Scanning Frequency: 50Hz(PAL), 60Hz(NTSC)
Back light Compensation: Auto
Electronic Shutter: 1/50(1/60) ~ 1/100,000Sec
White Balance Auto
S/N Ratio: More than 48db
Gamma Correction: >0.45
Connectors:
- Power
- Audio/Mic Connection
- AV Out
Power Adapter: DC12V, 500mA
IP Camera Network:
Wired LAN : RJ-45 10/100M accept Ethernet
Protocol of the Network: TCP/IP, FTP, SMPT, HTTP, ICMP, PPPoE
Applicable Scope: House, Hotel, Corridors Aisle, Large square, Road, etc. various occasions
Approved: CE / FCC
After Sales Service: 1 Year Warranty
Manufacturer: SecurityIng


Accessories:
4 x IR Cameras
4 x Mounting Hardware
5 x Power Adapters
1 x AV Cable
1 x AV Converter
1 x CD
1 x Remote Control
1 x USB Converter
1 x Ethernet Cable
