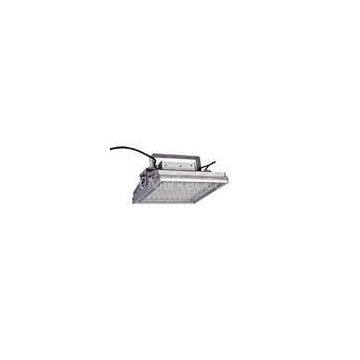

60W 220 Volt AC Waterproof LED Lights 7200lm For Soffit Lighting

60W 220 Volt AC Waterproof LED Lights 7200lm For Soffit Lighting



Quick details:

1. Can replace traditional lamps directly, wide application

2. High-brightness led

3. Multi-choice of color temperature and high color rendering

4. No pressure, no smoke dust

5. High power factor, low harmonic distortion

6. High-quality constant current drive power

7. Led bay light with 4 national patents

8. Significant energy savings, high input-output efficiency


Description:

ZGSM-LGCD-E series High Bay fixtures were designed specifically to replace conventional lighting in a wide
variety of industrial applications; both indoor and outdoor. Their low profile light weight design and versatile
mounting options make it ideal for many applications such as warehouse, garage, aisle, cold storage, bridge,
tunnel and general area lighting. All of ZGSM’s long lifeLED luminaires are designed to meet the most demanding
specification criteria while offering maximum energy savings, reduced maintenance costs, and a superior quality
of light.


Applications:

Workshops/ Warehouses
Cold Storages
Gas Stations
Indoor Parking Lots


Specifications:

1. LED Wattage: 60W
2. Nominal Wattage: 65W
3. Nominal Voltage: 100-240V AC, 50/60Hz, 24V DC
4. Maximum Current: 0.76A-AC,3.01A-24VDC
5. Optimal Operating Temperature:-40℃+50℃
6. Operating Humidity: 10% to 90%
7. Power Fact(PF): > 0.95
8. Driver Efficiency: > 90%
9. LED Luminous Flux: 7200 lm in Initial, 6600 lm in Maintain
10 . LED Luminous Efficiency: Up to 110 lm/w
11. CRI: Ra >= 75
12. CCT: 3000-3500K, 5000-5500K, 4000-4500K, 6000-6500K
13. IP Rating: IP20
14. Lifetime: 50000 hours
15. Housing:Die-casting Aluminum
16. Heat Radiator: Anodized Aluminum
17. Lens:Toughened Glass
18. Guarantee: 3 years
19. Fixture Dimensions: 346 x320 x174 mm/13.6 x12.6 x6.9 inches
20. Fixture Weight: 7.0 kg (15.4 lbs)
21. Packing Dimension: 385 x375 x225 mm/15.2x14.8x8.9 inches
22. Packing Weight: 9.0 kg (19.8 lbs)


Competitive Advantage:

1. High Quality and Brightness LED Light Source
2. Stable and Efficient LED Driver
3. Optimal Heat Sinking Performance
4. Superior Optical Design
5. Exclusive Appearance Design with Patents
6. Significant energy savings
7. Instant on/off
8. Maintenance free
9. Mercury free
10 . Superior light quality
11. No UV
12. Simple installation
13. Wide input: 100 - 240V AC
14. Resistant to shock and vibration
15. Temperature compensation technology for long life
16. Copper free aluminum
17. Superior Vision-Care
