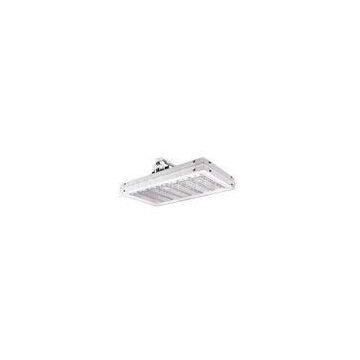

230W 60 Hz LED High Bay Lights With Copper Free Aluminum , Led Bay Lighting

230W 60 Hz LED High Bay Light With Copper free aluminum , Led Bay Lighting

Quick details:

1. Can replace traditional lamps directly, wide application

2. High-brightness led

3. Multi-choice of color temperature and high color rendering

4. No pressure, no smoke dust

5. High power factor, low harmonic distortion

6. High-quality constant current drive power

7. Led bay light with 4 national patents

8. Significant energy savings, high input-output efficiency

Specifications:

1. LED Wattage: 210W

2. Nominal Wattage: 230W

3. Nominal Voltage: 100-240V AC, 50/60Hz

4. Maximum Current: 2.69A

5. Optimal Operating Temperature:-40℃+50℃

6. Operating Humidity: 10% to 90%

7. Power Fact(PF): > 0.95

8. Driver Efficiency: > 90%

9. LED Luminous Flux: 25200 lm in Initial, 23100 lm in Maintain

10. LED Luminous Efficiency: Up to 110 lm/w

11. CRI: Ra >= 75

12. CCT: 3000-3500K, 5000-5500K, 4000-4500K, 6000-6500K

13. IP Rating: IP65

14. Lifetime: 50000 hours

15. Housing: Anodized Aluminum

16. Heat Radiator: Anodized Aluminum

17. Lens:PC

18. Guarantee: 3 years

19. Fixture Dimensions: 700 x395 x190 mm/27.6 x15.6 x7.5 inches

20. Fixture Weight: 13.9 kg /30.6 lbs

21. Packing Dimension: 750 x445 x220 mm/29.5 x17.5 x8.7 inches

22. Packing Weight: 16.1 kg /35.5 lbs

Description:

ZGSM-LGCD-E series High Bay fixtures were designed specifically to replace conventional lighting in a wide

variety of industrial applications; both indoor and outdoor. Their low profile light weight design and versatile

mounting options make it ideal for many applications such as warehouse, garage, aisle, cold storage, bridge,

tunnel and general area lighting. All of ZGSM’s long lifeLED luminaires are designed to meet the most demanding

specification criteria while offering maximum energy savings, reduced maintenance costs, and a superior quality

of light.

Applications:

Workshops/ Warehouses

Cold Storages

Gas Stations

Indoor Parking Lots

Competitive Advantage:

1. High Quality and Brightness LED Light Source

2. Stable and Efficient LED Driver

3. Optimal Heat Sinking Performance

4. Superior Optical Design

5. Exclusive Appearance Design with Patents

6. Significant energy savings

7. Instant on/off

8. Maintenance free

9. Mercury free

10. Superior light quality

11. No UV

12. Simple installation

13. Wide input: 100 - 240V AC

14. Resistant to shock and vibration

15. Temperature compensation technology for long life

16. Copper free aluminum

17. Superior Vision-Care
