Home > Products > Single USB Car Charger > 1.0 A CE FCC Single USB Car Charger For Sony / Nintendo Game Player

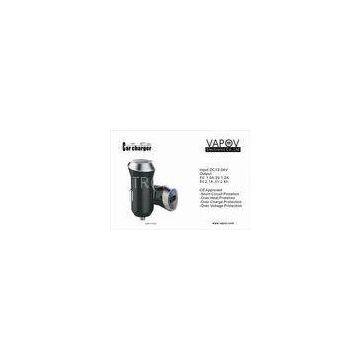

1.0 A CE FCC Single USB Car Charger For Sony / Nintendo Game Player
- T/T L/C D/P D/A
- 7 days
You May Like
-
CE 1.0 Amperet C able Car Charger For Nin game playe NDS
-
1.0 A USB Cable Car Charger For Nintendo game player NDSI CE ROHS
-
1.0 A Cable Car Charger For Nintendo game player NDSL CE ROHS
-
2.0 A Cable Car Charger For Sony Game Palyer PSP CE ROHS
-
2.0 A Cable Car Charger For Sony Game Palyer PSP go CE ROHS
-
2 A Cable Car Charger For Sony Game Palyer PSP Vita CE ROHS
Product Details
| Brand Name | VAPOV | Place of Origin | China | |
| Model Number | VAP117CC |
Product Description
Certification:CE/ROHS/FCC
1.0 A CE FCC Single USB Car Charger ?For Sony ?/ Nintendo Game Player
1. Input Features:
?????? 1) Rated input voltage: DC12-24V
?????? 2) Input voltage range: DC10-28V
? ? ? ?3) Efficiency: 83-93.8%
2. Output characteristics:
|
?? Rated output 5VDC 1A/1.2A/ 2.1A/2.4A |
Specification limits |
Remark |
|
|
Min value |
Max value |
||
|
Unload output voltage |
+4.9VDC |
+5.3VDC |
|
|
Full load output voltage |
+4.75VDC |
+5.25VDC |
|
|
Output current |
0 |
1.0A/1.2A/2.1A/2.4A |
|
|
Cc mode rate load cold ripple |
mV |
||
|
Over current protection |
A |
Adjustable |
|
|
Turn on delay time |
≤3S |
||
|
Hold up time |
8mS |
Full load |
3. Protective properties:
? 1) Over current protection
Under any input conditions,when output current is greater than the set current,the protection
mode is on, after output current become lower than the set current, the charger will
automatically restart work.
? 2) Output short circuit protection
Under any conditions, when short circuit occurs the protection mode is on, after short circuit
disappears, the charger will automatically restart work.
? 3) Over temperature protection
After the charger works for a long time, if the temperature is higher than that of IC set working
temperature, the protection mode is on, if the temperature drops to IC set temperature again,
the?charger will automatically restart work.
? 4) Over voltage protection
When output voltage is bigger than the set voltage, the protection mode is on, if the output
voltage?drops to set voltage again, the charger will automatically restart work.
4.EMI Test Report:
