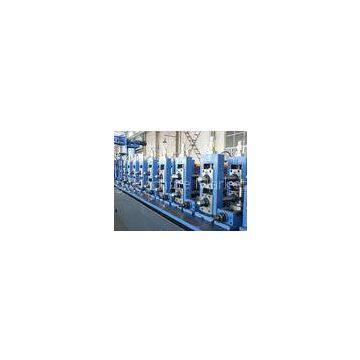

Custom made high quality high frequency welded pipe making machine
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Custom size and thickness precision welded pipe mill equipment for steel pipes
-
PLC control corrugated fin forming machine, transfomer manufacturing machinery
-
PLC control DC driving corrugated fin welding machine, transformer manufacturing machinery
-
1300X400 Automatic corrugated fin welding machine for power transformer
-
PLC control system corrugated fin forming machine, transfomer manufacturing machinery
-
35-30MPA hydraulic station corrugated fin forming, transfomer manufacturing machinery
Product Details
| Brand Name | HS | Place of Origin | China | |
| Model Number | custom made |
Product Description
Certification:ISO9001, CE
Custom made high quality high frequency welded pipe making machine
Tube Mill, Steel Pipe Production Line, Pipe Mill
1. To make steel pipe O.D. from 0.3 to 11inch(8mm to 273mm)
2. Wall thickness from 0.3 to 12mm.
The complete line include the following device:
1. Double side Uncoiler
2. Hoop cage or Horizontal Accumulator
3. Main Machine:
3.1. Forming Machine
3.2. Roller System of Forming
3.3. Seam Guide
3.4. High Frequency Induction Welding Machine
3.5. Roller System for Moving
3.6. Burr Removing Frame (Inside and outside Burr )
3.7. Water Cooling System
3.8. Sizing Machine
3.9. Roller System of Leveling
3.10. Speed Testing Wheel
3.11. Turkish Frame
4. Auto Flying Saw Controlled by Computer
5. Run out table
6. Electric Control Equipment
7. High Frequency Welding Machine
The technical parameters of Precision High Frequency Longitudinal Welded Pipe Mill:
|
Equipment Type |
Outside Diameter(mm) |
Thickness (mm) |
Production Rate (m/min) |
|
ZY16 |
7.6-16 |
0.3-1.0 |
0-100 |
|
ZY20 |
10-25 |
0.3-1.5 |
0-100 |
|
ZY32 |
13-38 |
0.6-1.8 |
0-100 |
|
ZY45 |
16-50 |
0.7-2.0 |
0-90 |
|
ZY50 |
20-63.5 |
0.8-3.0 |
0-80 |
|
ZY60 |
25-76 |
1.0-3.2 |
0-80 |
|
ZY76 |
32-89 |
1.2-3.75 |
0-80 |
|
ZY89 |
35-100 |
1.2-4.5 |
0-70 |
|
ZY125 |
50-130 |
2.0-5.0 |
0-60 |
|
ZY165 |
76-165 |
2.0-6.0 |
0-50 |
|
ZY219 |
89-219 |
3.0-8.0 |
0-50 |
|
ZY273 |
100-273 |
4.0-12.0 |
0-45 |
|
ZY325 |
89-325 |
3.0-12.7 |
0-40 |
|
ZY406 |
114-406 |
4.0-16.0 |
0-40 |
|
ZY508 |
219-508 |
4.0-19.1 |
0-40 |
|
ZY610 |
219-610 |
4.0-19.1 |
0-40 |
|
ZY660 |
219-660 |
4.0-22.0 |
0-40 |
?Main Functions: The welded pipe mills are mainly used on manufacturing electric heating tubes, refrigerator pipes, automobile frame pipes, fitness equipment pipes, furniture tubes, pipes for cooler, API pipes, pressure transmission pipes, architectural
