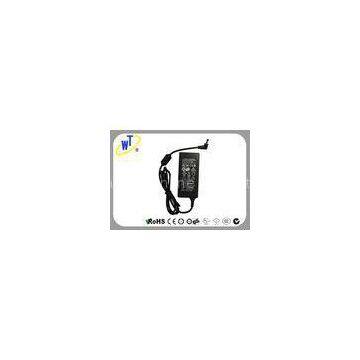

24 W Desktop Type Switching Power Supply Adapter with 5.5 2.5mm Connector

Brand Name	WT		Place of Origin	China
Model Number	WT1202000

Delivery Time:15 Days
Certification:UL/CUL, PSE, TUV/GS,CE, CCC, SAA, ROHS

24 W Desktop Type Switching?Power Supply Adapter with 5.5?× 2.5mm?Connector

Quick details:?

Input?voltage:?100?to?240V?AC,?50/60Hz Output?voltage: 12V 2A Power: 24W Socket type: 8 tips, 2 pins

Description:

1. Surface?cosiness,small?size?and?convenient?carrying

2. Low?cost,high?reliability?and?all?cases?are?covered?by?ultrasonic

3. Built-in?OVP,OCP?and?SCP

4. Universal?input?voltage:

a. I/P?voltage?100-240VAC;50/60Hz b. Turn?on?delay?time≤3s c. Inrush?current≤30A/24V?AC

5.?O/P:

a. High?accuracy?and?low?noice b. Hold?up?time?≥20mS

6. Operation?model: CV

7. Environment:

a. Operation?temperature:0°C-40°C;5%-90%RH b. Storage?temperature:-20°C-85°C;5%-95%RH

8. Cooling:Natural?cooling

9. Energy?standard:CEC/ERP

10. Safety?standard:IEC/EN60950?

11. Insulation:?hi-pot,?3,000V?AC?60S?10mA

12. Leakage?current:?0.25mA?(maximum)

13. MTBF:?MIL-HDBK-217F,?full?load,?25,?more?than?50,000?hours

14. RoHS?compliant

Warranty:	1?year
Certification: ? ??	UL/CUL,?PSE,?TUV/GS,CE,?CCC,?SAA?and?ROHS
Usage:	Audio player,?Video player, Massagers
Packaging:?	PE?bag+?white?box??50 pcs/carton ? ?
Place?of?Origin:	China
Brand?Name:	WT
Model?Numeber	WT1202000
MOQ	500 pcs
Delivery?Time:	15 Days
Payment?Terms:	T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply?Ability:	6000 PCS/Day

Our?Advantages:

Professional&experienced?engineers Good?quality Competitive?price Intime?service Free?samples?available? About?10?years?experiences OEM/ODM?services?are?highly?welcome Flexible?to?meet?dynamic?requirements High?technology Short?Lead?time AC?input?power?suitable?for?the?world Soft-start?current?can?reduce?the?AC?input?impact?efficiency With?short-circuit?and?overload?protection Compact?size?,light?weight 100%full-load?burning?test Installed?with?EMI?filter?,minimum?wave

Some Using Details:

Do not install power supply in locations with high humidity, dust or strong direct sunlight. Connect power supply to the supplied unit. Power supply must be connected to a working electrical AC line with a voltage of 100-240V. Power supply can only be installed indoors. The power supply should be installed in a location with good airflow.
