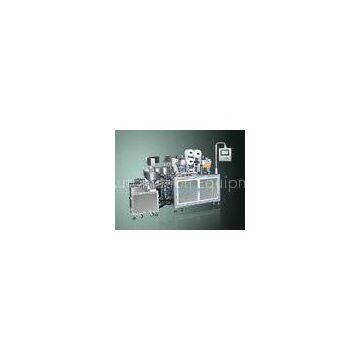

Automatic Vacuum Deaeration Liquid Powder Filling Machine with Stainless Steel Protective Cover

Brand Name	Broadfair		Place of Origin	China
Model Number	HX-PW02

Delivery Time:45-60 days after deposit received

Automatic Vacuum Deaeration Liquid Powder Filling Machine with Stainless Steel Protective Cover

Detailed Product Description:

Cylinders: Festo & SMC

Pneumatic Components: AirTac

PLC: Mitsubishi

Electrical Components: Schneider

HMI: Weinview

Tanks: SUS304 steel

Working Table: Stainless Steel Protective Cover

Quick Detail:

1. Capacity: 4-6 Molds / Minute, 2 pcs /mold.

2. Maximum feeding area; 90mm*140mm.

3. Filling with Piston Pushers.

4. 6-8 colors filling available.

5. Filling tolerance within 0.05g.

6. Easy and convenient color change and cleaning.

Description:

The main working process of the machine includes liquid powder feeding and pressing. Firstly, the powder is mixed with solvent and stirred evenly in the cone-shaped tanks and fed to each tray cell respectively by piston-pusher, then pressed to finished product. The machine is safe and easy to handle and only one operator is needed.

The maximum feeding area is up to 90mm*140mm.(traditionally it’s 70mm*70mm). Automatic suction Jig design reduces the liquid powder feeding deviation and defective rate. The tanks are integrated with pushers, which shortens the movement to enhance the feeding speed and is applicable for high viscosity liquid powders. This patented design solved the inner leaking problem and only low viscosity liquid powder is applicable for the traditional powder feeding mechanism. Cone-shaped Tanks with 3 direct links solved the problems of the flat-bottomed ones for the feeding failure caused by insufficient remaining liquid powder, low feeding speed and slow powder replacement. With optional numbers, the rotating straight line feeding piston cylinders are applied for easy operating and regulating, leak-proof,, less feeding pressure loss to stable the products quality. Vacuum pump is supplemented to assist the powder feeding, which helps to enhance the products quality and saves energy with lower noise. Double switch design of the feeding and mould avoids powder suck-back and vacuum in the feeding pipes.

Applications:

This Multi-color Liquid Powder filling machine is widely used in the mass production of Eye Shadow, Blush and so on.

Specifications:

NO.	Description	Specs.
1	Design capacity	4-6 molds/min. 2pcs/mold.
2	Power Source	ΦA(chǔ)C220
3	Air Pressure	6-8kg/cm2
4	Unit Weight	380kg
5	Power Consumption	4 kw
6	Machine Dimensions (L*W*H)	1650mm * 1250mm * 1810mm
