HDMI Portable COFDM Receiver Supports High-Speed Mobile Transmission
- T/T L/C D/P D/A
- 7 days
You May Like
-
2.4G Vehicle Mountable COFDM HD / SD Wireless Audio Video Receiver System
-
2.4G Standard Export Integrated All - in - One Wireless AV Receiver
-
OFDM 2.4G All - in - One Four - Way Wireless Audio / Video Receiver
-
OFDM 2.4G Handheld Video Receiver for Wireless Communications
-
Video Audio AV Portable TDD Transmitter , Digital Video Transmitter 600MHz
-
Smart Long Distance TDD Transmitter Vedio Sender for Fire Prevention
Product Details
| Brand Name | LinkAV | Place of Origin | China | |
| Model Number | C1000 |
Product Description
Certification:CE Applicable

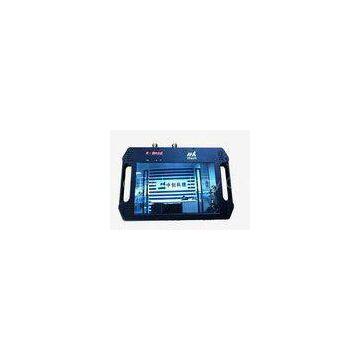

C1000 Handheld Portable COFDM Receiver
Background:
Zhongchuang Tech?is specialized in COFDM, TDD and 3G/4G wireless video transmission products for over 9 years, including video wireless transmitter, video wireless transmitter and receiver, quality video wireless transmitter, products are applied widely among Public Security Bureaus, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels,UAV, Automobiles and so on.
Product Features:
C1000 Handheld Receiver is the small and light device newly developed this year. It has applied advanced carrier diversity, supports high-speed mobile transmission, non-line of sight (NLOS) transmission. With 10.1 inch HD display screen, the video quality can be 1080P. And it has a simple operating system with a perfect video display. External?Display?Screen (AV?Port) can support video output. It is widely applied to security, civil air defense, civil defense, fire control, emergency rescue departments and forest fire prevention, transportation, customs, railways, oil fields, mining, water conservancy, electric power, finance, television stations broadcast relay, and other important departments.
Technical Parameters:
|
Item |
Description |
|
Modulation Type |
COFDM |
|
Working Frequency |
46-860MHz; per 0.5M adjustable |
|
RF Bandwidth |
2/3/4/5/6/7/8MHz(optional) |
|
Sensitivity |
-106dBm |
|
Video Output |
HDMI display,External?Display?Screen:?AV?Output |
|
Video Compression |
MPEG-2, H.264 |
|
Audio Output |
3.5 mm headsets |
|
Forward Error Correction |
1/2,2/3,3/4,5/6,7/8 |
|
Parameter Control Method |
Adjustable Digital LED Control Panel |
|
USB |
External Memory: U Flash Disk |
|
Encryption Method |
128 - bit AES (can set user’s password) |
|
Antenna Interface |
N Female Head*2 |
|
Display Screen Size |
10.1 Inches |
|
Working Voltage |
DC12V |
|
Working Current |
1Ah to 1.5Ah |
|
Working Temperature |
-10~70℃ |
|
Dimensions |
300*200*30(mm) |
|
Weight |
2(Kg) |
