Home > Products > Toyota Backup Camera > Automotive Toyota Backup Camera 720 TVL / 480TV lines ,Night Vision

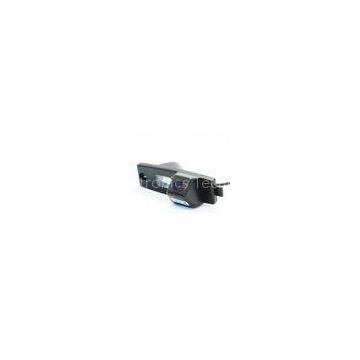

Automotive Toyota Backup Camera 720 TVL / 480TV lines ,Night Vision
Negotiable
/ Set
1 Set(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
30fps LED Ford Rear View Handle Camera , PC7366 automotive backup camera
-
Shockproof Rear View Camera Trucks Universal Car Camera with Plastic Adjustable
-
Matellic Adjustable Universal Car Camera With Night Vision Waterproof IP67
-
Little Hat Night Vision 170 Degree Universal Car Camera To DC 12V 110 mA
-
New Butterfly NTSC / PAL TV System CCD Universal Car Camera with Waterproof
-
1.3 million pixels Rear View Mirror Camera System G-sensor Motion Detection
Product Details
| Brand Name | HTJ | Place of Origin | China | |
| Model Number | Toyota Highlander |
Product Description
Certification:CE, FCC
Automotive Toyota Backup Camera 720 TVL / 480TV lines ,Night Vision
Quick Detail :
Brand :HTJ
Type: Toyota Backup Camera
Model Number : Toyota Highlander
Lens Angle : 170 degree
Lens : f = 2.5 mm, F = 2.0
Image Resolution : 720 TV L / 480TV lines
?TV System: PAL / NTSC
Place of Origin: Shenzhen
Description :
| Chipset | PC 7366 |
| Resolution | 480 TVL / 720 TVL |
| Image Sensor | 1/3 1/4“ CMOS |
| Video Output | 1.0vp-p, 75 Ohm |
| ?Minimum?Illumination? | F1.2,0.6Lux |
| Frequency | 30fps |
| Image Feature | Level |
| Scanning?System? | 525lines,60fields/sec |
| Sensing Area (mm) | 3.6 * 2.7 |
| White Balance | Auto (2500K~9500K) |
| Rated operational Voltage | 12V DC |
| S/N?Ratio | > 48dB |
| Viewing Angle |
115 degree / level , 95 degree / Vertical , 135 degree/ Cater corner |
| Photosensitive pixels | 648 x 488 pixels |
| operating voltage range | 9V~16VDC |
| AGC / BLC | Auto |
Applications :
Fit for Toyota Highlander
Driving safety assistant system
Help Parking and Reversing
Specifications :
|
Effective pixels |
(NTSC)720×480 , (PAL)720×576 |
|
Image Feature |
Level (horizontal ) |
|
Storage Temperature |
-30°C~+80°C , RH 95% MAX. |
|
Operating Temperature |
-20°C~+70°C , RH 95% MAX. |
|
Anti-vibration |
10 g |
|
S/N Ratio |
Better than 48 dB (> 48dB) |
|
Connection |
RCA / 4 PIN DIN |
|
Video Output |
1.0vp-p, 75 Ohm |
| Viewing Angle | 115 degree / level , 95 degree / Vertical , 135 degree/ Cater corner |
| Image quality assurance temperature | -20-+70 ℃ |
| Electronic Shutter | 1/60～1/100,000 Seconds |
Competitive advantages :
Night Vision
HD , CCD Sensor , LED
Dustproof /?? Shockproof /? IP 67 Waterproof
Rliability Quality? / ?Competitive Price
?
