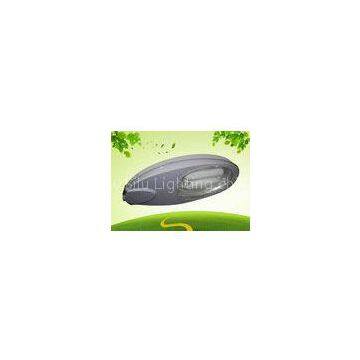

LVD Induction Street Light 100W , 120V Inductive Lighting With Toughed Glass

Brand Name	NSL		Place of Origin	China
Model Number	NSL-LD005

Delivery Time:Within 15 working days , depend on QTY
Certification:CE,ROHS,UL

LVD Induction Street Light 100W? , 120V Inductive Lighting With Toughed Glass

Quick Detail:

Item Type: Induction Street light?? ??Lighting Source: Induction Lamp Square Series

Input Voltage(V):90-305V ,220V?????? Lamp Power(W): 40-100W

Lamp Luminous Efficiency: 75-85lm/W?? ??CRI:Ra>80???

Color Temperature(CCT): 2700-6500K? ????Working Temperature(℃):-35 - 50

Working Lifetime (Hrs): 100000 hours????? IP Grade: IP65

Lamp Body Material: Die-casting aluminum body , aluminum reflector , Toughed glass.

Start way : Quick instant on /of?????????? High Power Factor: >0.98

Place of Origin: Changzhou , China?? Certifications: CE, ROHS , UL

Brand Name: NSL??????????????????? Model Number: NSL-LD005

Description:

Housing: High Pressure Die-casting aluminum alloy body , electrostatic spray surface treatment,high quality powder coat finish,good for heat elimination. Reflector: High Purity Mirror imported aluminum reflector ensures high-output luminous flux, ?,beautiful and durable. Glass: High-intensity, high temperature resistant cambered tempered glass. Good transparency,high security. Wattage Range: Big range voltage from 90V to 305V available. Color:? 2700-6500K available. Lamp Source: NSL-DP series square type low frequency induction lamp source,with 40-100 Wattage, 90-305 input voltage,2700-6500K available, 100000 hours lifespan . High purity rare earth fluorescent phosphor with high luminous efficiency and low light degradation. Light Tube thickness is more than 0.8MM. Magnetic ring is high temperature resistance with high inductance, Long lifespan. Electronic Ballast : Rational distribution of each components,imported high quality capacitor, IC chips, MOS tube. Three EMC filters against interfering signal.

? Applications:

1. Urban sub-trunk road, Spur track, bridge, Parking, street villas.

2. Use 40/60/80/100W square tubular induction lamp with high lighting efficiency (75-80Lm/w) and lumen maintenance at 70% at 60,000 hours and rated life of 100,000 hours at 65%, about 12 years on burning 8000 hours per year.

3. Electronic ballasts features high power factor(>0.95), flickering free, and constant output wattage, safety protection and meets FCC non-consumer requirements with low and extremely low EMI designs.

4. Suitable install height: 4-8M

5. Option: Light control component

Specifications:

Street Light Induction Lamp Fixture

Brand Name	?NSL	Fixture Code	NSL-LD005
Wattage:????????	40W-100W	Fixture Dimension(mm)??????	880*410*225mm/pcs
Weight	9/85 kgs	Lifespan	100000hours
Voltage:	90V~305V / 220 V ???	Protection level:	IP65
Power factor:	>0.98	CRI:	?Ra> 80
Color Tem:	2700~6500K	Packing Dimension(mm)	1000*430*245mm/pcs
Application:	Urban sub-trunk road, Spur track, bridge, Parking, street villas

Competitive Advantage:

(1) Long performance life: Life up to 60,000-100,000 hours.

(2) High energy efficiency: Luminous effeciency ≥80-90Lm/W, save 50-80% energy.

(3) Low light falling: ≤5% in 2000 hours.

(4) Low temperature: normal working temperature≤80°c.

(5) No flicker: Operating frequency is 140 KHz-250KHz.

(6) Full color temperature: 2700K-6500K.

(7) High power factor: ≥0.98.

(8) Environmental protection: with solid amalgam, no pollution to the environment even it is broken.99% reclaim.

(9) Instant startup: Starting time is less than 0.5 second.

(10) CRI≥82Ra
