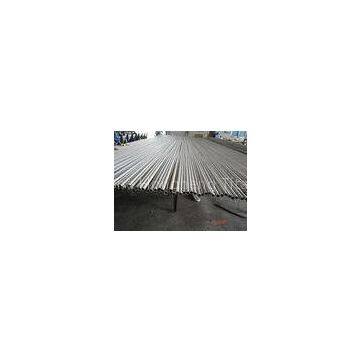

Seamless Titanium Capillary Tubes For Condensers , Gr1 Titanium Pipe

Seamless capillary titanium tube

ASTM B338/B337/B681
1).Grade:Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr12,Gr16,Gr17
2).OD:2mm-168mm
3).T:0.2mm-60mm
4).L:<=18000mm

Description:

Seamless capillary titanium tube

1.Grade:Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23

2.OD: 1mm-355mm

3.WT: 0.3mm-30mm

4.L: within 18Meters

5.Standard: ASTM B337,ASTM B338,ASTM B861

6.Surface Treatment: polished or according to customer\'s requirement.

7.Final product test: Ultrasonic test, Eddy current test, Hydraulic test, Bend test, Flaring test and so on.

8.Packing:Seaworthy wooden case

9.Mininum order:20KGS

10.Third party inspection: acceptable

CP grade 1 can be used in the deep drawing parts for its good elongation and excellent corrosion-resistance.

CP grade 2 is used the most widely in the commercially pure titanium.

CP grade 3 is almost only used in pressure vessel.

CP grade 4 can be use in some fittings parts and fastening pieces, but for complex shape need 300 degree celsius to form.

Alloy grade 5, Ti-6Al-4V, is the most widely used in the titanium alloys because of its comprehensive mechanical, physical and chemical properties.

Alloy grade 7, add little palladium in cp titanium and it has the most excellent corrosion-resistance. Of course it costs higher.

Alloy grade 9, Ti-3Al-2.5V, is the most widely used in the golf clubs and bicycle girders.

Alloy grade 12, it has the similar properties with the grade 7 but costs lesser.

Alloy grade 23, Ti-6Al-4V ELI (Extra Low Interstitial) can be use in the medical appliance.

Applications:

1.Heat exchangers and condensers

2.All kinds of corrosive fluid transmission pipeline system.

3.Titanium bicycle tube,automobile exhaust pipe.

4.Offshore aquaculture.

5.U type heat exchanger coil pipe ;Condenser; petroleum pipeline ; Sea farming

6.Evaporimeter;Fluid Transporation Piping etc.

7.Chlorine alkali, spaceflight, desalination , pure alkali,
vacuum salt manufacturing, aviation spaceflight,, nuclear power, petrifaction
industry, medication sports equipments

Specifications:

titanium tube for exporting
Standard: ASTM B338,B337,B861
Material:Gr1,Gr2,Gr3,Gr5,Gr9.ETC.
Size : OD 1-10mm,WH 0.1-0.4mm,L less than 40000mm.
