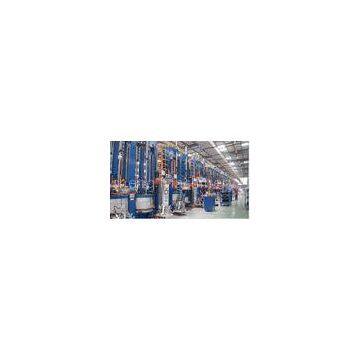

Double Mould Vertical Tire Rubber Vulcanizing Machine ISO9001 Certificate
- T/T L/C D/P D/A
- 7 days
You May Like
-
1.6MPa Vertical Vulcanizer Dual Mode Hydraulic Tire Curing Press With PLC
-
1300mm Hydraulic Auto Tyre Vulcanizing Machine Car Tire Vulcanization
-
Gas Pneumatic Three Way Two Position Valve Industrial Air To Close Valve
-
Industrial SelfControl Pneumatic Air To Open Valve Three / Two Way
-
Pneumatic Control Steam Three Way Two Position Valve With Flange
-
1.0 Mpa Self Pressure Regulating Valve Pressure air check valve for steam agency
Product Details
| Brand Name | ROSNM | Place of Origin | China | |
| Model Number | 48 model |
Product Description
Certification:ISO9001
Double Mould Vertical Tire Rubber Vulcanizing Machine ISO9001 Certificate
Quick Detail:
|
Name |
Tire Curing Press |
Brand Name |
ROSNM |
|
Color |
As your request |
Feature |
B (B Center) ,B (hot plate), C (open die vertical lifting) ,4B (4 station after inflating device),Pressure mould locking force,Host structure frame |
|
Warranty |
1 year |
Place of Origin |
CHANGZHOU |
|
control |
PLC |
Certificate |
ISO9001 |
Description:
> Technical parameter:51〞hydraulic vulcanizer
> PRODUCT IDENTIFICATION NUMBER:LLY1330BBC4B
> Max Mould Closing Force:1850KN
> Hydraulic Pressure:21Mpa
> Dia. of Platen:Φ1300mm
> Bead Range:14\"-20\"
> Parameters of process medium
External-temperature steam pressure?? 1.2Mpa Internal-temperature steam pressure?? 1.6Mpa Nitrogen pressure???????????????????? 2.4Mpa Temperature precision of upper and lower hot plates??????????? ±1℃ Temperature difference between upper hot plate and lower hot plate????????? ≤1℃ Temperature precision of steam house??????????????????? ????±1℃ Temperature difference between left and right molds?????????? ?±1℃ Synchronism of air charging for left and right capsules (setting)?? ±0.05s Offset between hole center of installation mold of upper fixed plate and center of T-trough of lower hot plate should be≤2mm> Maximum setting steam pressure:(Decided by user)
> Maximum inner pressure nitrogen of vulcanization: 2.4 MPa
> Maximum external pressure of steam: 1.4MPa
> Maximum inner pressure of steam: 1.6MPa
> Main power source: 3φ,380V,50Hz
> Control power source: 220V,50Hz or 24DC
> Type of main drive : Vertical lifting type
> Type of tire manufactured: Steel-belted tire
Applications:?
Used for vulcanization of steel-belted tire
Specifications
|
Model |
LLY1330BBC4B |
|
Tire parameters ?Diameter scope of tire |
14″－ 20″ |
|
O.D. of vulcanized green tire |
560mm－950 mm |
|
Height of vulcanized green tire |
300mm－500 mm |
|
O.D. of vulcanized tire |
600mm－950 mm |
|
Height of vulcanized tire |
155mm－360 mm |
|
Maximum setting steam pressure |
(Decided by user) |
|
Air cylinder |
Japan SMC Germany FESTO |
|
Solenoid valve |
Japan SMC Germany? FESTO |
|
Maximum inner pressure nitrogen of vulcanization |
2.4MPa |
|
Type of tire manufactured |
Steel-belted tire |
|
Mold-opening/closing time |
≤25 sec |
|
Circle |
≤80 sec |
|
Adjustment of? chuck gap |
Manually/automatically |
|
Three pneumatic components (air pressure regulator, air filter and atomized lubricator) |
SMC |
|
Nitrogen balance valve |
USA HONEYWELL |
|
Rotary connector |
Japan ROCKY /Korea VALAS |
|
Maximum mold clamping force |
