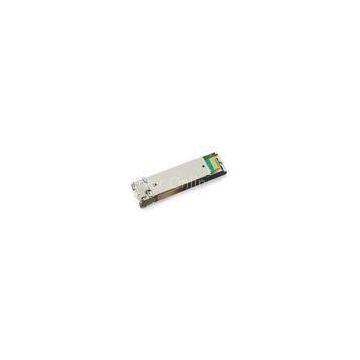

HP Compatible SFP Optical Transceivers 850nm For 1.25Gb/s J4858C 1000Base Ethernet

Brand Name	PrimusIT,OEM		Place of Origin	China
Model Number	PTR-8012L-C

Delivery Time:Within 1-3 working days after PO confirmed
Certification:CE/FCC/RoHS/TUV/UL

HP Compatible SFP Optical Transceivers 850nm For 1.25Gb/s 1000Base Ethernet

1000BASE-SX SFP transceiver module HP Compatible for MMF, 850-nm wavelength, dual LC/PC connector.

Specification:

P/N	J4858C
Datarate	1.25Gb/s
Distance	550M
Wavelength	850nm
Transmitter	VCSEL
Receiver	PIN
Media	MMF
DDM/DOM	NO
Connector	LC
Application	Gigabit Ethernet
Operating Temperature	0℃~ +70℃
Voltage Supply	3.3V
Certification	RoHS/TUV/CE/FCC/UL
Brand	PrimusIT, OEM

Description:

1000BASE-SX SFP transceiver module HP Compatible for MMF, 850-nm wavelength, dual LC/PC connector.

The PrimusIT Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.

Features:

Up to 1.25Gb/s data links Hot-pluggable SFP footprint Using 50/125 μm MMF 550m transmission distance Support digital diagnostic functions Uncooled Fabry-Perot 850nm VCSEL laser transmitter Duplex LC connector RoHS compliant and lead-free Metal enclosure, for lower EMI Single 3.3V power supply Operating temperature: 0°C to 70°C(Standard), -40°C to 85°C (Industrial) Compliant with MSA SFP Specification Digital diagnostic monitor interface Compatible with SFF-8472

Applications:

1.25Gb/s 1000Base Ethernet
1.06 Gb/s Fibre Channe

Gigabit Ethernet
SONET/OC-24
Fiber Channel links

ATM Switches and Routers
SONET/SDH Switch Infrastructure
XDSL Applications
Metro Edge Switching
WDM GBE Links
SONET/SDH Equipment Interconnect
Fiber Channel Links

Competitive advantage:

1. Excellent quality and 3 years warranty

2. Competitive pricing

3. Full compatible (CISCO/HP/Juniper/H3C/Extreme…)

4. OEM/ODM Customized label

5. Keep stock,Fast delivery
