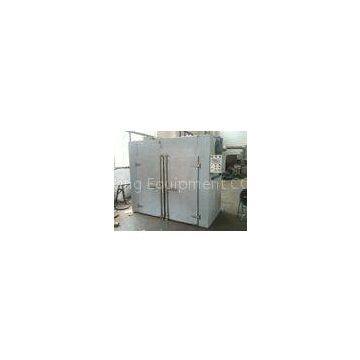

Energy-saving pharmaceutical Hot Circulating Drying Oven for heating / solidification

Quick Detail:

Description:

CT-C series hot air circulation drying oven uses a low blower and high temperature proof axial flow blower and an automatic temperature control system. The whole circulation system is the fully enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-40% of then present of the present one. The highest heat efficiency can reach 50%.The successful design of CT-T hot air circulation the advanced level both at home and abroad. In order to save a large quantity of the energy in our country, in order to enhance the economic results of the enterprises, in 1990,the medicine management bureau of the State issued the industry standard and the uniform type is RXH.

Applications:

It is suitable for heating and solidification, drying and dehydration of raw material in pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industry and other industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, power, particle, drinking agent, pill packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish etc.

Specifications:

uses a low blower and high temperature proof axial flow blower and an automatic temperature control system.

Competitive Advantage:

1. For the heating source, there are two kinds: the steam, and ihe electrical or far Infraredsteam for our users to choose.
2. The temperatures to be used: steam heating 50 ~ 140 C, Max. 150 ’C.
3. The moisture while using the electrical or temperatures: 50 - 350 ’C.
4. There are the automatic control system and the computer control system for users’ selection.
5. Commonly used steam pressure 0.02 ~ 0.8 Mpa (0.2 - 8 kg/cm2)
6. If the electrical heating and type one, the calcu4ation is 15kw, and the practical use is 5 ~8 kW/h.
7. The special requirements should be indicated at the time of order.
8. The price for the non-standard oven should be consulted.
9. The use temperatures more than 140 ’C and less than 60 ’C should be indicated at thetime of order.
10. The ovens and baking plates made by our factory are uniform in the dimensions, and can be exchanged each other.
11. The baking plate dimensions: 460 x 640 x 45mm.
