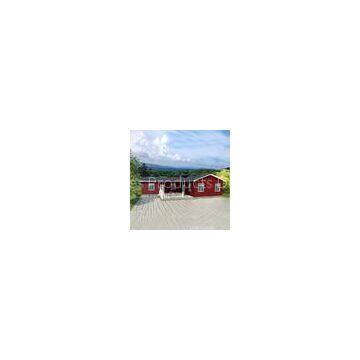

Temporary Large Span 2 Bedroom Modular Homes For Office Building

Brand Name	PTH		Place of Origin	China
Model Number	PTD6P276-138F

Delivery Time:One month
Certification:ISO, CE, BV

Temporary Large Span 2 Bedroom Modular Homes For Office Building

Quick Detail:

Certificate: ISO,CE Material: steel frame and sandwich panel Roof: 75mm PU sandwich panel Lifetime: more than 50 years Wind-proof: maximum 60 meters per second Fire resistance: all the materials used will be fire resistance Snow resistance: maximum 2.9KN/M2 as required Water and heat insulation: 100 mm in thickness can match more than 1m thickness of brick wall Seismic performance: more than 8 scales Insect prevention: Free from the damages by insects, such as white ants Acoustic insulation: 60db of exterior wall 40db of interior wall Ventilation: a combination of natural ventilation & air supply

Applications:

Carport, Hotel, House, Kiosk, Booth, Office, Sentry Box, Guard House, Shop, Toilet, Villa, Warehouse, Workshop, Plant, kitchen, corridor.

Specifications:

(I)	Primary structure
Light steel keel	Wall system: 140/89mm; Roof system: 70mm(Q550 Galvanized)

Light gauge steel channel

(II)	MAINTENANCE
EXTERNAL WALL	27mmPU EMBOSSED STEEL PANEL+HOUSE WRAP+12mmOSB BOARD+150mm INSULATION GLASS WOOL+12mm WATERPROOF GYPSUM BOARD
INTERNAL WALL	12mm WATERPROOF GYPSUM BOARD+150mm INSULATION GLASS WOOL
FALSE CEILING	0.5mm COLOR STEEL SHEET
9mm GYPSM BOARD
FLOOR SUPPORTING BOARD	1mm GALVANIZED MODELED FLOOR SUPPORTING BOARD
GALVANIZE
FLASHING EDGING	0.5mm SELF FOLDING COLOR STEEL SHEET
DOOR	1200*200mm STEEL DOOR
960*2050mm STEEL DOOR
800*210mm PVC MODELED DOOR
700*210mm PVC MODELED DOOR

Sample of the wall system

(III)	FITTINGS
HARDWARE	?
RAINWATER SYSTEM	75*50mmPVC RECTANGULAR TUBLE
PVC EAVES GUTTER(WITH ACCESSORIES)
ELECTRICITY	LIGHTS, SWITCHES, SOCKETS, DISTRIBUTION BOX

Description:

PTH serial container house is kind of modular house, consisting of cold bending, thin-walled light steel keel system, thermal wall system and roof system. It is a new type of energy conservation and environment protection house which is easy and convenient to install. Currently, the PTH serial light steel villas have been exported to more than 70 countries all over the world (such as Brazil, South Africa, Dubai, Japan etc.) It is widely used in the fast development area, the remote area, construction sites, poor areas as dorm, shower room, toilet, kitchen, teaching building, office, refrigerator house, switch board room, and military camouflage house etc.

PTH serial container house is CE&BV&TUV certificated. We will design according to the local wind pressure, snow pressure and seismic magnitude. Its service life can be more than 60 years. We have the most advanced production line from New Zealand so that we can supply EUUSA ChinaNew Zealand standard building materials.

The advantages of PTH serial light steel villa: fast to build; shorter construction period; easy to install; low labor cost; various types; low requirement of the location and climate; can be built even on the mountains and beach etc.;

Compared with the traditional concrete building and thimble frame building, its seismic, wind, fire, insect, resistance are much better. Further more, it’s low cost, energy saving is accordance with the world’s sustainable development.

steel dosage of PTH villa is 16kgm2; the keel has 3 sizes: 70mm/90mm/14mm;as for the wall system and house system, we have many solutions for our clients to choose so that they can have a more comfortable living space.As for the small size light steel villa, it can add a steel structure chassis so that the villa can break the limitation of the environment and can be moved conveniently.

PTH also supply you high quality shower room, kitchen equipments, air cooler etc. According to the client’s demands, we can also supply other equipments.

Competitive Advantage:

1. easy to install ---- all the fixed holes and pipe holes are prepunched,2-3 worker can finish the installation.(save 70% labor cost, shorten 10% construction period, fasten 30% the construction process)

2. Fire and insect resistance ----- All th
