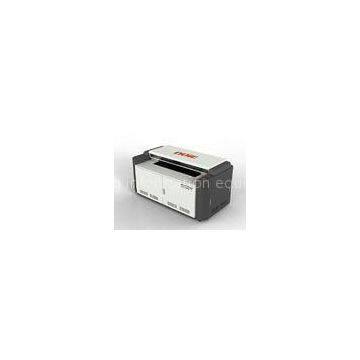

Automatic Loading Way CTP Equipment,Computer To Plate Machine

Brand Name	DOIE		Place of Origin	China
Model Number	THERMAL-CTP 48 CHANNELS

Delivery Time:45days
Certification:ISO9001

Automatic Thermal CTP Platesetter

830nm laser diode Light Source

For Various thermal ctp plates

Automatic Loading Way CTP Equipment, Computer To Plate Machine

Specifications:

X-0482T ?Thermal CTP

Model	X-0482T
Light Channels	48
Output Speed(P/h)	23
P size:1030mm×800mm
Light Source	830 nm Laser Diode
Output Resolution (dpi)	2400
Dot Reproduction	1%～99%
Register Accuracy (mm)	＜0.01
Plate Size (mm)	Max. 1160×940；Min. 450×320
Suitable Plates	Various thermal ctp plates
Plate Thickness (mm)	0.15~0.30
Plate Loading and Unloading	Loading:Automation(Standard Set) Unloading:Automation Vacuum Fixation
Plate Position Accuracy (mm)	0.2
Plate Balance	Automatic Balance
Data Interface	USB,1000Mbit/s
Ambient	Temperature 25℃±3℃ Humidity 20~80%(Non-condensing)
Machine Dimension (mm)	L2200×W1100×H1050
Net Weight (kg)	1500
Power Supply	≤6KW/220V±5%,50/60Hz

Description:

DOIE Thermal-CTP uses the most advanced and stable V model guide rail fixed position technology, using automatic loading way and 830nm laser diode, made the high energy field value of thermal material development, high development quality, after baking , the thermal plate could prints about million times.

DOIE Thermal-CTP is full digital controlled technology, not only is a mature commercial products and the source of profits, but also to the prepress printing integration technology development which have the immeasurable influence and realistic significance.

Applications:

CTP platemaking machines generally divided into inside drum, the drum type, plate type, curve type four major categories. In the four types at present, the most use is the internal drum and the drum; The performance with most high-grade CTP platemaking machines are the drum type.

Digital workflow is integrated control the whole printing production process software system.

Recently, mainstream digital working flows in the market are all applied to DOIE-CTP series

Competitive Advantage:

1. Precise guiderail chassis. Manual entire scrape.

The chassis is HT300 inblock cast, guiderail and chassis became in one, the high mechanical strength, the high heat stability, less possibility of deformation. The guiderail precision could achieve 1-3μm/m,effectively ensure printing precision. Scraping guiderail is made by cast-iron, the surface has one thin oil slick, play an lubricant, protective role; Using import soft guide pairs and precise grinder guiderail technology, make optical platform move has little wear; the moving of platform has better smooth, precision.

2. Independent vacuum structure, effectively absorb various plates.

By using the three-cavity technology, the drum could effectively absorb various plates, avoid the plate. According to different size of plate, adjust absorptive power, could achieve best printing effect. Using negative pressure checking before printing, avoid the plate flying. Using negative pressure checking in printing, avoid the plate flying. Using negative pressure and prevent air leakage technology.

3. High precision side-
