Industry Oil Rotary Vane Vacuum Pump for freeze drying equipment , 240l/Min
- T/T L/C D/P D/A
- 7 days
You May Like
-
professional electric oil vacuum pump , refrigeration Rotary Vane Vacuum Pump
-
Root Industrial Vacuum Pumps system , Aluminium alloy electric vacuum pump
-
industrial Gray Compressor Air End for rotary screw air compressor 0.7MPa - 1.25MPa
-
professional blue Belt Driven Compressor Air End air compressor parts
-
220V industrial Minimum Pressure Valve MPV For screw Air Compressor
-
aluminum Minimum Pressure Valve MPV , air compressor safety valve 220V
Product Details
| Brand Name | BAOSI | Place of Origin | China | |
| Model Number | 2 |
Product Description
Certification:ISO90001

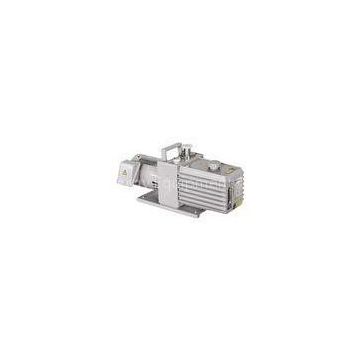

Industr Oil Rotary Vane Vacuum Pump for freeze drying equipment , 240l/Min
Quick Detail:
Model: BSV 16
Colour : graywhite
Material : Aluminium alloy
Motor : 0.55KW ,3 phrase/1 phrase, 4poles?
Pumping Speed:240L/min (50Hz)
Pumping Speed:290L/min?(60Hz)
Place of Origin: Zhejiang ,China
Gross Weight : 27kg
Description:
No rotary vane spring selection making the pump low noise, low vibration but long service life.
Built-in oil check valve avoid the phenomenon of oil return.
Forced feed lubrication of built-in oil pump can make the pump operating continuously and stably for a long time at the atmospheric pressure.
Applications:
Coating ,lighting, refrigeration, vacuum drying, freeze drying, solar energy, instruments analysis, leak detection equipment ,packaging and heat treatment metallurgy etc.
Specifications :
|
MODEL ITME |
BSV16 |
UNIT |
|
|
Pumping Rate |
50Hz | 240 | L/min |
| 60Hz | 290 | ||
|
Margin Pressure |
Gas Ballast Close | 5X10-1 | Pa |
| Gas Ballast Open | 5.0 | ||
|
Motor Power 380V/220V |
0.55 | kW | |
| Motor Speed | 50Hz | 1400 | r/min |
| Oil Required | Upper Limit | 1.2 | L |
| Inlet Diameter | KF25 | DN | |
| Outlet Diameter | KF25 | DN | |
| Weight | 27 | kg |
Competitive advantages:
No rotary vane spring selection making the pump low noise, low vibration but long service life.
Built-in oil check valve avoid the phenomenon of oil return.
Forced feed lubrication of built-in oil pump can make the pump operating continuously and stably for a long time at the atmospheric pressure.
