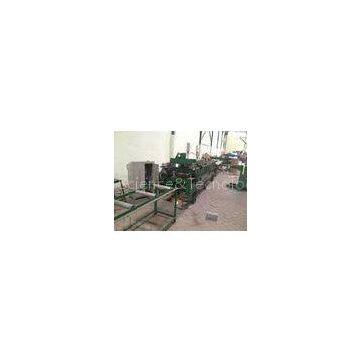

0.4mm - 0.6mm Ridge Cap Roll Forming Machine , Roof Tile Making Machine
- T/T L/C D/P D/A
- 7 days
You May Like
-
AMS control Roofing Tile Roll Forming Machine Roofing Tile Hydraulic
-
0.4mm - 0.6mm Roofing Tile Making Machinery PPGI Steel Coil Forming Line
-
7.5Kw Glazed Tile Roll Forming Machine Roof Panel Forming Line For Prefabricated Houses
-
Auto Roofing Tile Roll Forming Machine Double Layer Roof Tile Machinery
-
29-198-990 Tile Span Forming Machine Tile Span Roll Forming Machine
-
30-185-740 Step Tile Roll Forming Machine Step Tile Hydraulic Decoiler
Product Details
| Brand Name | HRF | Place of Origin | China | |
| Model Number | HRF304 |
Product Description
Certification:CE
Ridge Cap Roll Forming Machine
Description:
Main power:4KW Transmission \"1 inch chain drive Roller station:16 stations Size of machine: approx 8000mm*1000mm*1200mm Rolling speed:12m--18m/min Working speed:3--5m/min Shaft dia.:φ50mm Hydraulic power:4KW Working pressure:16Mpa Cutting blade material:Cr12,quenched 58-62 Sheet thickness:0.4-0.6mm Materials to be rolled: PPGI,PPGL,GI,GL ,G350Mpa Coil feed width:304.8mm Chrome plated 0.05mm on the surface of rollers material of roller: 45#forge steel Material of blade: Cr12, quenched 58-62 No abrading on the surface Computer control: PLC, Omron brand Omron encoder to programme the length ?Yaskawa inverter? made in Japan The computer is LCD touch-screen, Green Safety coverEquipment:
manual decoiler, roll forming machine, hydraulic station, PLC cabinet, hydraulic shear, pressing unit,output table(2)
Profile Drawing:
Flow chart:
manual decoiler — feeding — forming — pressing ---- cutting — product
Applications:
Ridge caps.roll top ridge, ridging top
Main Technical specifications:
|
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
0.4-0.6 |
|
2 |
Forming speed |
m/min |
18 |
|
3 |
Roll station |
/ |
16 stations(depend on the profile) |
|
4 |
Main power |
kw |
4 |
|
5 |
Hydraulic power |
kw |
3 |
|
6 |
Control system |
/ |
PLC, panasonic/Siemens |
|
7 |
Drive |
/ |
by chain |
|
8 |
Way of decoiler |
3 manual decoiler |
Competitive Advantage:
1: We are a professional manufacturer of designing,producing the glazed tile forming machine
2: With top quality and reasonable price we build a long term business relations with some overseas companies
3: It has special pressing mould to process the steel thickness from 0.2mm up to 0.5mm without steel surface scratches and damages while pressing
