HD CMOS Car Reverse Parking System Around View Monitor For Honda CRV

Brand Name	CLD		Place of Origin	China

Delivery Time:5-30 days upon order quantity
Certification:CE
HD CMOS Car Reverse Parking System Around View Monitor For Honda CRV?

Quick Details:

Type: 360 Degree Car Visual Security Parking System

Voltage: DC 12V

Car make: for Honda CRV

Resolution: 520TVL

Effective pixel: 668*576

MOQ: 1 set

Place of origin: Guangdong China.

HD CMOS 360 Degree around Bird view Parking System?Around View Monitor /AVM Parking Guidance System With DVR function?Specific for Honda CRV?

Description:

360 degree Bird-view Parking Assistant System is a system that through 4 pcs. extra wide angle cameras at front, rear, left and right side, collecting images around the car to form a 360°bird-view image by image software tool and splicing technology, then sending the images to the SZM display equipment.

Through this system, drivers can visually know car’s position and the around objects, and control parking the car easily, or reduce traffic accidents, like scratch, crash, or sink.

Product Details

Item	usage

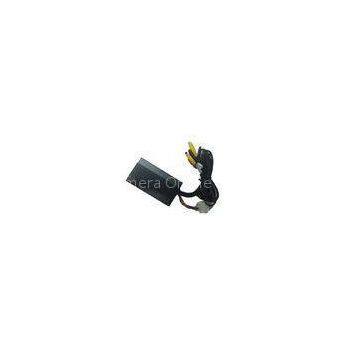

Bird-view CPU Box	system core part
Front camera	180°wide angle HD night vision Camera at car front
Right camera	180°wide angle HD night vision Camera at car right side
Rear camera	180°wide angle HD night vision Camera at car rear
Left camera	180°wide angle HD night vision Camera at car left side
Camera extension line	camera’s power supply changeover and extension connection
Controlling wire	wires to reverse line, left/right signal line, infrared line…

Applications:

This unit is specific for Honda CRV car, a helpful tool for drivers to park cars.

We have many models for choice for specific brand cars, like for AUDI, VW, TOYOTA, HYUNDAI, KIA, and so on. If you have special requirement, welcome to send us enquiry!

Specifications:

Key Specifications/Special Features:

System:

o??? Left/right rear-view mirror cameras specially design for Toyota Crown

o??? Capture the image of 4 different views with the use of 4 wide angle cameras (fish-eye angle) installed around the car, after image processing and stitching and synthesizes to a panoramic view image with 360° from top-down (bird view) surrounding the car, and the panoramic view timely transferred to the display screen of the control center

o??? Equipped with DVR to record image from 4 cameras

Clear 360° bird view panoramic display around automobiles Super wide horizontal viewing angle (180°) Auto image mosaic Video output to DVD or monitor, image show in screen with remote control can be:

o??? Front view + bird view

o??? Rear view + bird view

o??? Left/right side view + bird view

Video output: CVBS/NTSC Resolution of video output: 800x480 DVR memory: micro SD card up to 32GB or mobile hard disk via USB USB: USB2.0 for connection to mobile hard disk, for DVR recording, for software upgrading, and for view DVR recording On screen set up menu Working voltage: 8 to 30V DC Working current: <500mA at DC 12V Working temperature: -30 to 70°C Storage temperature: -40 to 85°C DVR features:

o??? Your on-site witness, automatically record when ignition on

o??? Shutdown time-lapse delay recording

o??? Synchronous video replay and recording

o??? Manually open/close recording quickly

o??? Replay video at any time

o??? Date/time shown on video

o??? Loop recording

Camera features:

o??? Image sensor: CMOS high-definition sensor PC1089

o??? Waterproof and weather-resistant housing for outdoor use

o??? Good night vision performance, small noise and no color aberration

o??? 180° wide viewing angle

o??? Picture elements: NTSC/PAL

o??? Effective pixels: 668*576

o??? Horizontal resolution: 520TVL

o??? Video output: 1.0Vp-p 75Ω

o??? Low illumination: 0.5 lux

o??? Gain control: automatic

o??? White balance: automatic

o??? Backlight compensation: automatic

o??? Working temperature: -30 to 70°C

o??? Storage temperature: -40 to 85°C

o??? Waterproof level: IP68
