Product Details

Brand Name	KINGLEADER		Place of Origin	China
Model Number	MKP92-12F

Product Description

Delivery Time:20days
Certification:CE,FCC

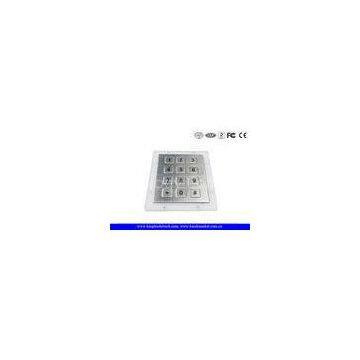

Rugged Metal Numeric Keypad With 12 Short-Travel Keys Panel Mount

PN:MKP92-12F

Key Features:

1)12 flush keys, crispy tactile feedback, all the keys are in the same size

2)Keys are in 3X4 matrix

3)Panel mount from the rear side

4)Exposed parts made of stainless steel, high resistance against destruction, rust etc

Silicone keypad membrane extends beneath the front panel way to the edge of the back panel, so the membrane also functions as a sealing gasket, no additional gasket will be needed when installed, therefore this design can better prevent water from seeping into the PCB than other conventional design (where the rubber is the same size as the front panel), this enhancement makes it an ideal choice for outdoor application.Layout customizable according to customers request

5)Application: ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines, kiosks, workstation, outdoor weight station etc.

Technical Specification
Material
Front panel & Keys	304 stainless steel
Number of Keys	12
Matrix	3 x 4
Function	Non backlight
Electrical Data
Interface	USB or PS/2 or RS232(With electronic controller board) 7PIN connector (Without electronic controller board)
Certification	CE,FCC
Environmental Characteristics
Operating temperature	-20o C to + 60o C
Key travel	0.45mm
Lifetime (cycles)	Min 5, 000, 000 actuations
Sealing protection	IP65/NEMA4X from the front
Layout	Customizable available
Dimension	92.00 x 76.50 mm (W x D) (front panel)
Application	ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines, kiosks, workstation etc.
