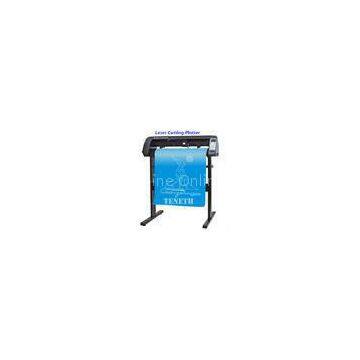

24'' Servo Motor Reflective Film Laser Cutting Plotter with USB / Serial Port / U Disk
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Wifi Contour Cutting Vinyl Plotter Cutter with Laser Optical Eye 500mm/s
-
Automatic Mini Laser Cutting Plotter For Paper / Film , Micro Step Driver and ARM7 CPU
-
With Huge Pressure 1000g Cutting Vinyl Plotter Cutter / Paper Width 1300mm
-
High Precision Laser Cutting Plotter Machine for Traffic Sign and Wall Sticker
-
Professional Cutting Vinyl Plotter Cutter with Optical Eye Model TH74OL
-
Sticker / Art Glass / Paper Cutting Plotter Vinyl Cutter Machine AC 90 ~ 240V 50HZ / 60HZ
Product Details
| Brand Name | Teneth | Place of Origin | China | |
| Model Number | TH740XL |
Product Description
Certification:CE
TENETH 24\'\' Laser Cutting Plotter TS740XL with USB Interface And Cutting Force 1000g
Quick Detail:
1:? Model Name: TS740XL
2. Max.Paper feed width: 740mm
3. Max. Cutting size: 635mm
4. Max. cutting speed: 1000mm/s
5. Cutting force: 5-1000g
6: Material: metal + aluminium alloy
7. Interface: USB / Serial Port / U disk
Description:
1. First adopt 3.0inch large touch screen display in worldwide, can operate by touching the panel directly.
2. Adopt imported high steel axis to move the paper.
3. Can read the date from USB flash driver directly, which can work independently without PC.
4. USB2.0 interface, transfer the data more fast and more stable.
5. Use New ARM control system.
6. Repeat function, can repeat 500pcs.
7. Support CDR, AI, CAD professional design software, etc to do output directly.
8. Support MAC operation system.
Applications:
Make wall sticker, car sticker, advertising signs, signs,art glass, paper cutting,etc.
Specifications:
Cutting Plotters Parameter:
|
Model Information |
|||
|
Grade:Top Grade |
Brand: TENETH |
Market time: 2012-7 |
Warranty: 1 year |
|
Model Number: TENETH cutting plotter TS740XL |
|||
|
Basic Parameter |
|||
|
Material |
Sheet metal +aluminum alloy |
Media way |
Floor stand(Optional) |
|
Max.Paper feed width |
740MM |
Max.Cutting Size |
635MM |
|
Paper feeding system |
Drum steel thorn paper |
Paper feeding way |
Dual paper stick flat manually |
|
Axis steel distribution |
Universal size distribution |
Number of Axis steel |
4pcs |
|
Platen device |
Double springs huge pressure roller holder |
Number of Roller holder |
3?units |
|
Driver |
Servo?driver |
Origin setting |
Set each original points manually |
|
Cutting Speed |
50-1000MM/S |
Cutting length |
Unlimited |
|
Cutting Precision |
0.005MM |
Repeatable precision |
<0.005MM |
|
Cutting force |
5-1000g |
Cutting thickness |
0.05MM-1MM |
|
Idling Speed |
0-3 gear adjustable |
Noise |
60-65dB |
|
Control System |
|||
|
Mainboard |
32-bit ARM7 CPU,4MB |
Control Panel |
11 silicon buttons + LCD touch screen |
|
transmission mode |
Serial Port+USB+U disk |
