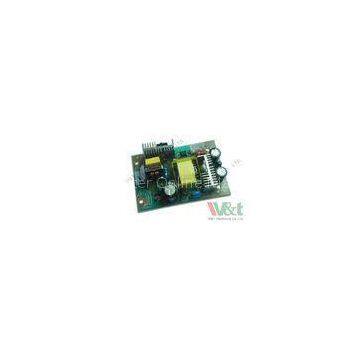

Open Frame 15W AC DC Power Adapter 3.3V 5V 36V 48V 200MA For Medical Equipment

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	W&T		Place of Origin	China
Model Number	W&T-OP15W-A

Product Description

Delivery Time:15-30 days
Certification:PSE UL CE GS EK FCC CB BS

Open Frame 15W AC DC Power Adapter 3.3V 5V 36V 48V 200MA For Medical Equipment

Quick Detail:

Input/Output Specifications: Input voltage: 100V-240V AC, 50/60Hz Range voltage: 86V-265V AC, 47-63Hz Output power: 6~15W Single output :3.3V 5V 12V 18V 24V 36V 48V Continuous current range: 200MA~3.0A Input/output connection: Pin Terminal? block

?Safety: CE, GS, KC, PSE, UL, FCC

Competitive Advantage:?

High efficiency power, High Reliability (Ultra low no-load /standby power consumption)

Meets \"ENERGY STAR\" program requirement

Over voltage protection

Over load & short circuit protection

100% full load burn-in test

2 Years warranty

Application:??

It’s?suitable?for?an?extremely?wide?range?of?applications,?including:

?

Network products, network terminal equipment and the communication products Medical products, medical instruments and medical equipment IT products, audio products , audio and video broadcast products Computer products , data storage products and the security products Finance equipment, industrial equipment and restaurant equipment Education products, health care equipment and military products
?

Datasheet spec:

INPUT	Voltage	90-264VAC universal full range
Frequency	47-63Hz
Current	＜0.5A@100V AC input, full load condition
Inrush Current	＜40A@115V , ＜60A@230V AC input.Cold start at 25℃ ambient
Leakage Current	＜0.5A@ 264V AC input
OUTPUT	PART NO.	AD15WE03	AD15WE05	AD15WE09	AD15WE12	AD15WE15	AD15WE18	AD15WE24	AD15WE48
Voltage	3V	5V	9V	12V	15V	18V	24V	48V
Max Load	0-4.0A	0-3.0A	0-1.66A	0-1.25A	0-1.0A	0-0.83A	0-0.63A	0-0.31A
Output Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Ripple Noise(MAX)	50mV	50mV	90mV	120mV	150mV	180mV	240mV	300mV
Efficiency(MIN)	≥75%	≥75%	≥85%	≥85%	≥85%	≥85%	≥85%	≥85%
Output MAX	15W	15W	15W	15W	15W	15W	15W	15W
PROTECTION	Over Voltage	over 120%～150 max
Shutdown and latch off, recover after re-start up
Over Load & Short Circuit	When power supply over 105%～150 max load or short cir
