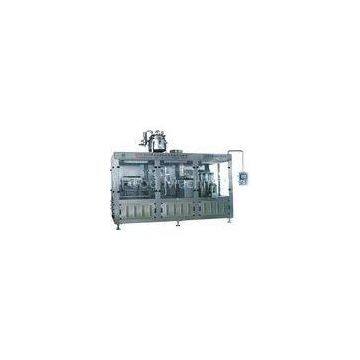

3000BPH Automatic Beverage Machinery Gable Top Carton Filling Machine For Juice / Milk / Coffee

3000BPH Automatic Gable Top Carton Filling Machine For Juice Milk

Gable top carton filling machine Features:?
1. It is applicable for various specifications.?
2. It owns intellectual property rights and many patents rights.?

3. The machine is made by closed stainless steel and the move of cartons, top welding and bottom welding are driven by cams.?
4. High automatization; Simple process; Easy maintenance.?

5. This machine is a dual-purpose machine and it can also apply to paper-AL-PE laminated materials and TTM paper (plastic-paper-plastic laminated materials )?
6. The machine uses HTST (high temperature / transient) sterilization, normal temperature filling to ensure the preservation of content for a long time.?
1. Work flow:?

Put cardboard into carton holder (manually) --- Bottom preforming --- Bottom heating and sealing --- Ultrasonic capping (Optional) --- Filling --- Top preforming --- Top heating and sealing --- Date printing --- Finished product?

The whole process is controlled by PLC, and only need one person to operate.?

2. Suitable for filling:?

Various kinds of dairy products, such as milk, yogurt, cream, soy milk, beaten egg, etc.?

3. Technical parameter:?
1. Capacity: 250--1000ml (can be filled by one machine)?
2. Output: 1800-2500 cartons/hour?
3. Packing material: Cardboard carton / aluminium foil carton?
4. Capping: With capping (Optional)?
5. Shelf life: Milk, yogurt: 7--21days ( 2-6 degC storage)?
6. Filling temperature: 2-50 degree centigrade?
7. Overall power: 25KW (three phases of electricity)?
8. Compressed air pressure: 1.0-1.4 Mpa, Flow rate: 1.4-2M3/min, without oil, water and dust?
9. Cooling water: Flow volume: ≥ 40L/ min Temperature: ≤ 30 degC?
10. Size: (L*W*H): 3.7m*1.6m*2.8m Net Weight: 3500kg?
11. Installation requirement: Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to make angle.?

4. Payment terms?
1)T/T: 30% as deposit, 70% balance before shipment?
2) L/C at sight?

5. Delivery time?
1) For automatic filling machine 60 days?
2) For semi-automatic filling machine 45 days?
3) For manual filling machine 30 days?
?
