Product Details
| Brand Name | Xin an jiang | Place of Origin | China | |
| Model Number | RFM0.65-560-30S |
Product Description
Certification:GB/73984-2004/IEC60110-1998,CE

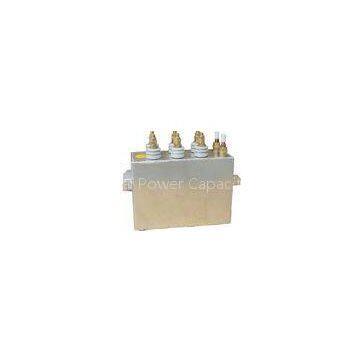

Water-Cooled High Power Shunt Capacitor Electric Heat Capacitor
Quick Detail:
Type: Power capacitors??
Application: Induction heating?
Package Type: Surface Mount
Capacitance: 250-3000KVAR ??????
Rated Voltage: 0.375KV-4KV ?????
Operating Temperature: -25℃-+50℃
Free discharge: resistance inside
Standard: GB/73984-2004/IEC60110-1998
Certificate: CE, ISO9001
Application and functions
RFM water-cooled electric capacitor can be applied in AC power system which can be controlled or adjusted at rated frequency to improve the power factor or circuit characteristics of devices for heating, inducing, melting, stirring or molding, etc.
Specifications
|
Model |
RFM0.65-560-30S |
|
Rated capacity(kvar) |
560 |
|
Rate voltage (Kv) |
0.65 |
|
Rate frequency(Khz) |
30 |
|
Codes and standard to be applied |
GB/73984-2004/IEC60110-1998 |
|
Tropicalized execution |
>10% / <95% |
|
Min. / Max. Ambient temperature inside electrical cabinets |
+5°C / +55°C |
|
Equipment storing temperature |
0°C / +40°C (*) |
|
Terminals material |
Copper |
|
Case material |
Aluminium/Copper |
Description:
R: electric capacitor (series code)
F: diphenylethylane (liquid medium code)
M: full film dielectric (solid medium code)
0.65: rated voltage (kV)
560: rated capacity (kvar)
30: rated frequency)Khz)
