IEC61032 Short Test Pin Probe
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Description

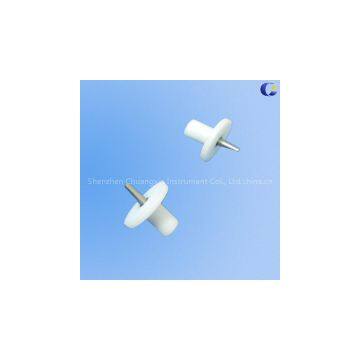

IEC61032 15mm Short test pin probe
Appliance:
It's the necessary tool to proceed protecting electric shock test of household and similar electrical appliances.
Purpose:
This probe may be used to verify the protection of persons against access to hazardous parts and to verify the mechanical strength of openings in the enclosure or internal barriers.
Conforms to:
Standard IEC61032-1997, IEC60529-2001,IEC60665, GB/T4208-2008 and UL etc.
Technical Parameter:
| Test probe diameter | head 3mm, tail 4mm |
| Test probe length | 15mm |
| Dam-board diameter | 25mm |
| Dam-board thickness | 5mm |
| Material | Handle is made of nylon, tip is stainless steel. |
We also provide other probes for household appliance testing, such as Jointed Finger Test Probe, Cylindrical Pin Test Probe, Short Pin Test Probe, Children Test Finger Probe 18, Children Test Finger probe 19, 2.5mm Rod Test probe and so on.
Welcome your kind enquiries!
