Custom Precision injection mold insert , injection moulded plastic components

Custom Precision Connector mould parts for injection mould insert

1.?Material using : imported SKH9

2.?Size ; According customer requirement

3. Hardness:58-60 HRC

4. EDM Precision: 0.002MM

5. Surface Grinding Precision : 0.002MM

6. Surface Roughness for EDM reach to Ra0.1 even mirror surface

7. Angle Clearness<0.05

8. OEM service

9. MOQ:1 PC acceptable

?Plastic ?injection mould parts process

1. material prepair and cut small piece by grinder.

2. Make high ?precision cooper?electrode?

3. The EDM machine process the difficult position?

4. After inspect and testing will be packed.

Production Normal Information

Why choice us

1. Chenghui Precision Mould?have more than 60 professional and skilled technicians ;10 master of optical profile grinding ,CNC milling, mirror EDM, wire EDM who were more than five years experiences working in foreign-owned enterprise. These talents ensure our product satisfy customer requirement quickly and our process skills are be industry leadership in mould machining field such as EDM and PG optical profile grinding.

2. Chenghui Precision Mould?specialize in precision led lead frame mould , precision progressive stamp mould and precision plastic mould part.?

3. Chenghui Precision Mould?provide advanced R&D service and experienced engineer ,your inquire would get prompt responses within 24 hours.

4. Sodick wire-cutting EDM and Sodick oil cutting EDM machines ensure general tolerance within 0.005mm, flatness,verticality,and linearity within 0.002mm.

5.?High Speed CNC (Switzerland Mikron 500LP ) milling machines ?mainly make the electrodes and precise cubic curve product, machining?variety of precision parts own excellent effect.With high precision electrode perfectly ensures EDM precision, quality and fast delivery.

?6. Sodick EDM machines make us possible to ensure EDM accuracy within 0.005mm.For special ?parts surface roughness?, Chenghui Precision Mould?could handle the Sodick EDM machines, which reach to from Ra 0.15 to mirror surface.

Cooperate with us

If you want to high precision plastic injection mould parts, please contact with us.

If you want to find ?good parter, pls choice us .

If you cooperate with us. ?Please send your inquiry and we will be good supplier in your system chain.

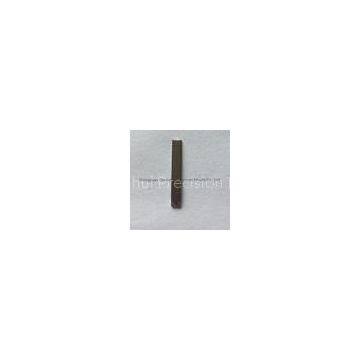

Product ?show?
