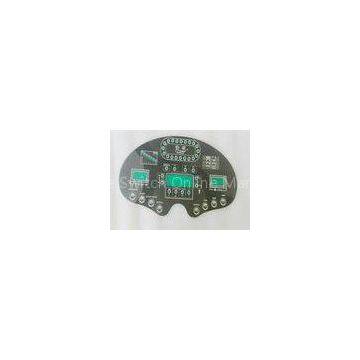

Water-proof Textured Membrane Custom Switch Keypads With Glossy Window

Water-proof Textured Membrane Custom Switch Keypads With Glossy Window

Quick Detail:

> Total thickness : 1.0 mm

> Push force : 280 g?

> Operating condition :?40°c,90%~95%,for 240 hours

> Life span : 1000000 times?

Description:

> Surface :Matte

> Overlay button: embossed 0.35 mm

> Window : no

> Led window : no color coated translucent

> Water proof class : IP 67

> Connector : without?

>?Matching color: Pantone and RAL color matching system.?

Specifications

1. Custom 4 button membrane switch?
2. Widly used in electronic component and electrical equipment etc.?
3. Pantone and RAL color

?button membrane switch

Overlay Materials:?The most commonly used base materials for membrane keybord are polyester and polycarbonate.

Rear Adhesive:?3M 467MP, 3M 468MP, etc.

Standard Tolerances:?.010 inch.

Matching color:?Pantone and RAL color matching system.

Tail, pin and circuit layout:?subject to customers detailed requests.

Drawing for production:Pls advise us the drawing for membrane keyboard in the format of CAD,CDR,AI etc. vectogram,or??? JPG,PDF?with detailed size

Type of buttons for membrane keyboard:

·???????? Non tactile

·???????? Tactile with stainless steel domes

·???????? Tactile with poly domes on the circuit

Notice:?We have the capacity to provide you membrane?keyboard with other special requirements, such as Shielding, Windows/Lens Coating, Embossing, Embedded LEDs, UV glossy/matte/textured, EL,LED backlingt,rubber keypad etc.
