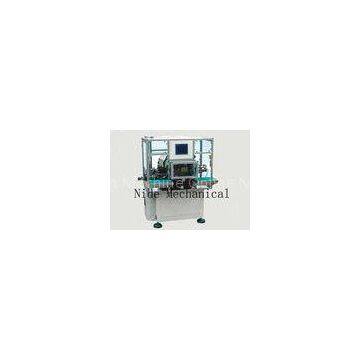

Full Automatic Stator Winding Machine with Two Working Station Two Poles ( Winder )

Full Automatic Stator Winding Machine with Two Working Station Two Poles ( Winder )

Quick Detail:

Description:

This Automatic stator winding machine could wind two stators at same time. Fixtures are in cycle operation automatically. No need to assemble fixture on the stator. It is benefit for the on-line operation

Function:

1. Cast iron or steel frame can absorb the shock. Accuracy is stable. The maximum winding speed is up to 450rpm (according to the wire diameter).

2. All the actions are fully automatic (including loading and unloading). The winding could be more stable and efficient.

3. The cutting part structure is in compact. Wire clamping and cutting is finished at the same time.

4. Easily to change the fixture for different types of stators.

5. Fixtures are in cycle operation automatically.It is benefit for the on-line operation.

6. Permanent magnet tensioning device enables the tension adjustment.

7. Travel and swing angle is adjusted within 150-220mm (mechanical adjustment) .It could adapt to different requirement of different stator models.

8. Two working stations
?

Parameter:

Competitive advantages:

?It can wind two stators at same time.?Easily change the fixture for different types of stators.
