RGB 1920X1080 DC12V Industrial Touch Screen Monitor With VGA DVI Input
- T/T L/C D/P D/A
- 7 days
You May Like
-
15 inch VGA / DVI-D LCD Industrial Touch Screen Monitor For ATM Financial
-
High Brightness 6.5\" TFT Outdoor Sunlight Readable Lcd Display 640x480
-
Professional Slim Indoor 7 Inch Led Backlight LCD Monitor For Kiosks 250cd/m^2
-
FHD 7 inch 16:9 Resistive Industrial Touch Screen Display / LCD Monitor With LED Backlight
-
Slim Advertising IR TFT Industrial Touch Screen Monitor 12.1\" With Front IP65 Bezel
-
Automatic Light 32inch Sunlight Readable LCD Monitor , 1000nits Outdoor LCD Displays
Product Details
| Brand Name | AXNEW | Place of Origin | China | |
| Model Number | AXD-21OPN1P1-T1(VGA/DVI) |
Product Description
Certification:CE/FCC/ROHS
RGB 1920X1080 DC12V ?Industrial LCD Touch Screen Monitor VGA DVI Input?

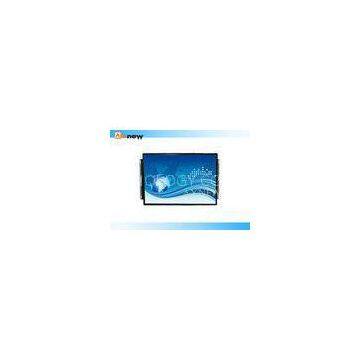

5 wire resistive touch screen of 21.5 inch industrial LED open frame monitor with VGA DVI input; slim and thin design for 21.5’’ touch? LCD. Full HD with low consumption widely used for Automatic industry , All in one equipments, Advertising , vending embedded system, Kiosks, etc
Quick Details:
|
Model: AXD-21OPN1P1-T1 |
Screen Size:21.5’’???????? |
|
Screen format: 16:9 |
Display Resolution(pixel):1920X1080 |
|
Contrast Ratio:1000:1 |
Brightness:250cd/m^2 |
|
Storage temperature : 0℃~60℃ |
Input signal: VGA DVI |
|
Power Input: AC100~240 V/DC 12V Touch Type: Resistive touch |
Product status: Stock |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ;USB Touch screen
6. 21.5 inch open frame touch LCD for application control , advertising player ,campus and industrial terminals etc
|
Display Specifications |
|
|
Display |
21.5\"?Touch LCD Open frame? |
|
Model Name |
AXD-21OPN1P1-T1 |
|
Active Display Area (mm) |
476.64 (H)x268.11(V) |
|
Pixel Pitch (mm) |
0.282(H)x0.282(V) |
|
Resolution (Pixel) |
WSXGA (1920X1080) |
|
Brightness (CD/m^2) |
250cd/m^2 |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle (CR >=10) |
160/160 |
|
Power consumption |
17.6?W typical, low consumption ,normal operation |
|
Touch Screen |
Resistive RS232/USB(Optional) |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Steel metal housing |
|
Dimensions |
522.0x 294.6x 33.0(mm) |
|
Mounting |
Embedded ,fixing holes on the back frame |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
0~60℃ |
|
Storage Temperature |
0~60℃ |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
|
Ordering Information |
21.5”?Touch lcd Open frame?FHD with VGA input and power adapter |
Packaging & Delivery
|
Packing details |
1x 21.5 inch Industrial Touch Screen Monitor; Packed in 5 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
|
Delivery terms |
7- working days for stock products after receiving payments;? 15 working days for order production |
