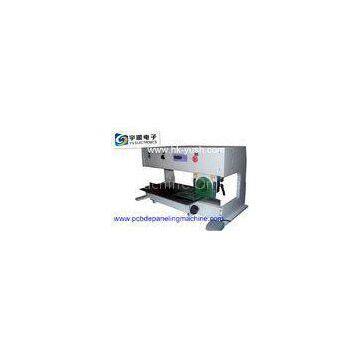

Automatic pcb depaneling equipment Tool For Pcb Assembly YSV-1A
USD $1000 - $1000
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Speed Automatic PCB Scoring Machine For Metal Board Cutting
-
Aluminum Led Strip PCB Depaneling Machine PCB Lead Cutting Machine
-
High Precision Pneumatically pcb depaneling machine for pcb scored board
-
Thick Aluminum / Copper PCB Depanleing Machine with High efficiency
-
High Speed PCB Depaneling Machine / PCB Singulation With Low Stress
-
SMT Automatic Depanelization Of PCB , V Cutter Laser PCB Depaneling
Product Details
| Brand Name | YuSH | Place of Origin | China | |
| Model Number | YSV-1A |
Product Description
Certification:CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Automatic pcb depaneling equipment Tool For Pcb Assembly YSV-1A
Specification:
| Model No | YSV-1A |
| Machine Dimension | 960*560*750 mm |
| Transfer Belt | none |
| Material of Blade | SHK-9 high speed steel |
| Cutting Speed | 0-1000 mm / s |
| Cutting Thickness | 0.8-3.5 mm |
| Voltage | 220VAC / 110VAC |
| Weight | 89kg |
Feature:
1. One cutting span is 0-460mm/pcb .
2. Cutting blade speed are 2 ype: 500mm/s & 300mm/s.
3. Operate platform adjusting range from 0 to 50mm.
4. Flexible setting design. i.e. micro adjust the upper and lower blade to fit some kinds of thickness of PCB.
5.As per the length of PCB, free setting stop point.
6.For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.
7.Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job.Dedicated.
to high strength cutting, and excellent toughness, able to cut metal board.
Application:
Aluminum base board
Copper substrate
V-CUT Line FR4 board
Glass fiber board
V-CUT LED light bar panel
V-CUTPCB circuit board
