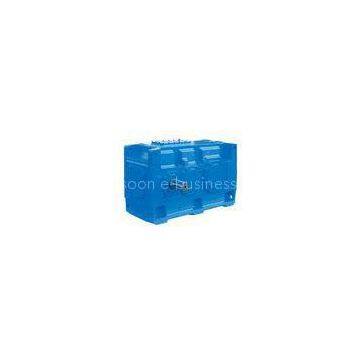

Cast Iron Heavy Duty Gearbox Solid Shaft For Water Screw Drives
- T/T L/C D/P D/A
- 7 days
You May Like
-
Planetary Stepless Speed Variator 960rpm With Speedvariatormotor
-
Custom Variable Speed 1HP 5HP Electrical Motor / 3phase Induction Motor
-
Parallel Shaft Helical Gear Motor High Loading , Gear Reduction Motor
-
Black Oxide FCL Flexible Coupling Anti Rust Paint Flexible Pin Coupling
-
Cast Iron Worm Speed Reducer Gearbox 1400rpm Electric Motor Speed Reducer
-
Lightweight Worm Gear Screw Jack Non Rusting For Lift , Machine Screw Jack
Product Details
| Brand Name | EASTSUN | Place of Origin | China | |
| Model Number | H.B |
Product Description
Certification:ISO9001/CE/CCC
Cast Iron Heavy Duty Gearbox Solid Shaft For Water screw drives
Description:
?
H.H series high power helical gear reducer, similar to Flender H.B gearbox, big power and torque.?
?
|
Series |
Transmission Ratio ?(i) |
models |
|
H1 |
1.25-5.6 |
H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19 |
|
H2 |
6.3-28 |
H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15, |
|
H3 |
25-112 |
H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15, |
|
H4 |
100-450 |
H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16, |
?
?
?
Your benifits:
Modular?design?system?Multi-purpose?use?of?the?housing?and?internal?components.
?
Progressive?ratio?of?sizes?for?optimum?selection?of?sizes.
?
Improved?noise?level?through?grounded?bevel?gear?teeth?and?noise-absorbing?housings.
?
Applications:
?
Bucket?elevator?drives
?
Separator?drives
?
Water?screw?drives
?
Conveyor?drives
?
Dryer?section?drives
?
?
Specification:
?
?
|
Stage |
Model |
Ratio |
Nominal Power (KW) |
Nominal Torque(N.m) |
Shaft |
Mounting |
|
Single-stage |
3--19 |
1.25--5.6 |
30-4,744 |
2,200-165,300 |
S. Solid Shaft |
H: Horizontal |
|
Double-stage |
4--26 |
6.3--28 |
21-5,193 |
5,900-843,000 |
||
|
Three-Stage |
5--26 |
22.4--112 |
9-4,749 |
10,600-952,000 |
||
|
Four-Stage |
7--26 |
100--450 |
4.1-1,325 |
18,400-944,000 |
