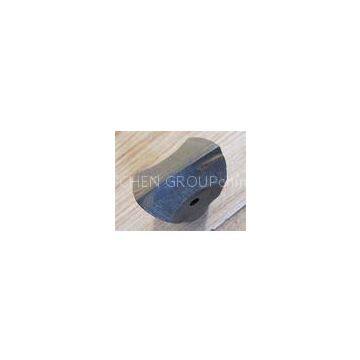

Golden 20mm to 89mm Chisel Drill Bit For Stone Rock Drilling Holes

Golden 20mm to 89mm Chisel Drill Bit For Stone Rock Drilling Holes
? ? ?

? ? ? ? ? ? ? ??
Specifications:

Chisel carbide drill bits?

1. Long life?
2. high quality?
3. Wide selections of drill bits?
4. ISO9001?
?

Features:?

We can design and manufacture according to customers\'s requirement of the Bit Dia., No. of air / water holes, carbide button shape and the face shape.

Durable Chisel bits: ??
Our company manufacture base of series of rock drilling tools, mining tools, DTH Drill tools and so on.
1. Chiesl Bit
Bit Diameter 20 - 51mm, Taper 7 degree

2. Cross Bit
Bits Diameter: 32-42mm, buttons 8 * 12, Taper 7degree, water hole 3

3. Chiesl Oblique Bit/Chiesl Long bit
Bit Diameter 32-42, buttons 8 * 12, taper 7 degree, water hole 3

4. four button bits
Bit Diameter 30-42mm, Taper 7 degree, Guage 3 * 8, Front 1 * 8, Angle 25 degree, Water hole3

5. Seven Button bits

Bit Diameter 32mm, 51mm, Guage 5 * 10, Front 2 * 8, angle 35 degree, taper 7 / 11 / 12 degree, water hole 3

6. Fact Face / Drop Center / Retrac Button Bit diameter 64mm, 76mm, 89mm, 102mm,thread R32, R38, T38, T45, T51

7. DTH bits?
Bits diameter 80, 90, 95, 100, 105, 110, 115, 120, 125, 130, 140, 150, 155, 160, 215, 220, 240, 255, 270, 305mm?

8. DTH hammer
?

The chisel bit is made from grade hard alloy and special steel, generally matched with the light-duty rock drill, to drill the rock hole within diameter of 50mm.?

It is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.
?

For more detailed specifications or catalog please feel free to contact with us.
?
