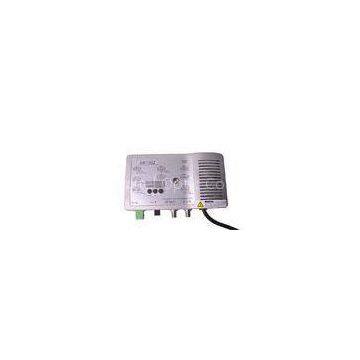

1GHz 75 FTTB Cable TV Fiber Optic Node SNMP Modularized With Single Mode

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Supply Ability 0 Kilogram / Kilograms per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SOFTEL.OEM		Place of Origin	China
Model Number	SR1002

Product Description

Delivery Time:About 7 days
Certification:CE|ISO|RoSH

SNMP 75Ω FTTB Cable TV Fiber Optic Node 1GHz Modularized With Single Mode Fiber

New Designed SR1002(SNMP) FTTx 45~862/1002Mhz 2 Output Wall Mounted Fiber Optical Node, CATV Indoor Optical Receiver wit

Quick Detail:

Brand Name: Softel Model Number: SR1002(SNMP) Item Name: SR1002 1Ghz 2 Way Optical Receiver Frequency Range: 45~862/1002Mhz Optical Input Range: -9~+2 Wavelength: 1100 ~ 1600 or 1530 ~ 1620nm Connector Type: FC/APC, SC/APC or Customized Fiber Type: Single mode Optical Return Loss: ≥45dB Power Voltage: DC12V/1A SNMP: Optional Optic Node Dimension: 142(L)x79(W)x36(H)

Description:

SR1002 optical receiver is our latest 1GHz FTTB optical receiver. With wide range receiving optical power, high output level and low power consumption. It is an ideal equipment to build the high-performance NGB network.

Adopt advanced optical AGC technique, optical AGC control range: +2dBm ～ -9/-8/-7/-6/-5/-4dBm adjustable; Forward working frequency extended to 1GHz, RF amplifier part adopts the high performance low power consumption GaAs chip, the maximum output level up to 106dBuv; EQ and ATT both use the professional electric control circuit, make the control more accurate, operation more convenient; Built-in the standard II class network management responder, support remote network management (optional); With compact structure, convenient installation, it is the first choice equipment of FTTB CATV network; Built-in high reliability low power consumption power supply;

Specifications:

Item	Unit	Technical Parameters
Optical? Parameters
Receiving Optical Power	dBm	-9 ~ +2
Optical AGC Range	dBm	+2 ～ -9/-8/-7/-6/-5/-4 (adjustable)
Optical Return Loss	dB	>45
Optical Receiving Wavelength	nm	1100 ~ 1600
Optical Connector Type		SC/APC or specified by the user
Fiber Type		Single mode
Link ?performance
C/N	dB	≥ 51	Note1
C/CTB	dB	≥ 60
C/CSO	dB	≥ 60
RF? Parameters
Frequency Range	MHz	45/87 ~862/1003
Flatness in Band	dB	±0.75
