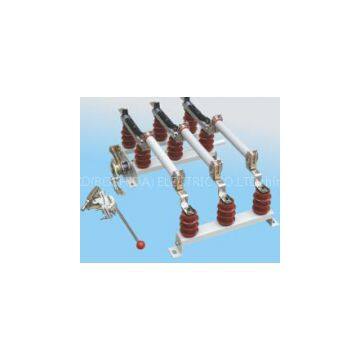

BOXD ELECTRIC Sell High Voltage Load Breaking Switch(LBS) 12KV With Fuse/without Fuse FN5-12

FN5-12 Series Iodoor HV. Load Switch Witch With Fuse

Packaging & Delivery

Packaging: Each set in awooden case or as per required

Delivery: 7-15 Working daysafter receiving 30% deposit by T/T or LC.

Product Description

FN5-12R(L) model indoor AC HVload break switch-fuse combination apparatus is developed and designed based oninternational technology and national power supply requirement, it passed alltype tests and trial-operation inspections. The apparatus conforms to IEC420:AC LOAD BREAK SWITCH AND FUSE COMBINATION APPARATUS(1990 EDITION) and GB3804:3-63KV AC HV LOAD BREAK SWITCH VOLUME AND LIGHT WEIGHT. Compared tointernational product it keeps up with technical level with small volume andlight weight. It is applicable in ring main unit and prefabricated substationsas well as 12kv line and power distribution system. The product realizes threeworking positions: power making, power breaking and earth. It applies to powersystem of rated voltage 6-12kv, 50/60HZ breaking load current ober load currentand short-circuit current.

Environmental conditions:

1)The altitude: under  1000M

2)The ambienttemperature:-25C-+40°C

3)The relative humidity of air:monthly≤90%, daily≤95%

4)Ampitude: Earthquake degree 8

5)Application occasions shouldfree from fire ,inflammables ,explosives, corrosives and  severe vibration.

Packaging & Shipping

each set in a wooden case or asper requirements.

Our Services

Samples will be provided and technical and after-service willbe always on -line fo you.
