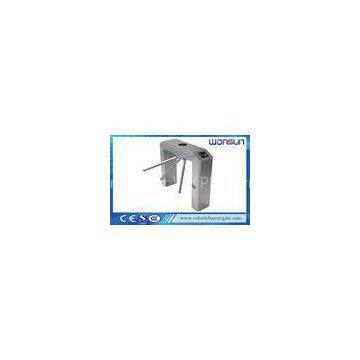

Entrance Control pedestrian Bi-direction Tripod Turnstile Barrier Gate With RS232 Socket

Brand Name	Supplier Platform		Place of Origin	China
Model Number	Supplier Platform

Delivery Time:3-10 working days after received your payment
Certification:CE, ISO, SGS

Bi-direction pass Tripod Turnstile Barrier Gate for Entrance Control System With RS232 Socket

Quick Detail:

Name: Turnstile barrier gate

Driving Motor: Brushless DC Motor

Power Supply: 220V±10%, 110V±10%

Transit Speed: 30~40 persons/min

Rated Power: 36W

Rotating Direction: Double Direction

Specifications

Description	Parameter
Power Supply Input	AC110/220V±10%, 50HZ 200W
Working Voltage	24V DC
Power Consumption During Idle	10W
Power Consumption During Operation	150W
Passage Width	600mm
Response Time	0.3 second
Pass Speed	25person per minute
Housing/Arm	Stainless Steel
Internal Mechanism	Mild Steel
Arm Disc	Alloy Chromed
Protection Level:	IP45
Working Temperature:	-30℃~50℃
Electro-magnetic drive:	24V DC
Thickness of Ply :	1.5mm (Standard)?304#
Polishing:	Brushed surface (Standard) / Polishing surface
Weight:	About 42KG
Size:	420mm(L)×330mm(W)×980mm(H)
Mechanical life:	Two million
Arm Length:	500mm
Arm Diameter:	38mm (Standard)
Max Tolerance of Arm:	60KG
Diving Force of Arm:	3KG
Relative Humidity (RH):	5%-90%(without concretion)
Interface:	RS485
Control I/O:	±12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms

Features:

● Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.

● If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.

● Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.

● Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.

●When power off, the arm will be dropped down (optional set free passage when power off) to the request of fire protection.
When power on, the arm can lift by hand.

● Emergency configuration: the tripod will drop automatically by power off to provide a clear walkway for escape in the event of an emergency

● Control panel with count and LED digital function. Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing

● It can be used for intelligent control and management of the passage after equipped with diffent access control system.

●A valid lock action can allow one passage at one time. It will lock automatically if passage through turnstile is not completed within pre-set time, the set time(from 2-60 seconds, by default, it is 10 seconds) can be set up with the built-in small keyboard or software.

●Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software)

Applications:

● Tripod Turnstile is an electro mechanical turnstiles. Its unique mechanical drive design allow the arm to be pushed effortlessly and auto-rotate back without any expensive electric motor

●Tripod Turnstile can effectively control high volume human traffic ( up to 25 person per minutes ) while still maintaining a welcoming atmosphere. They can easily be integrated with any electronic system for ticketing, access control or time attendance.

●Tripod Turnstile is suitable for both indoor and outdoor(Shed). They are optimized economical solution for railway, bus station, factory, colleges, commercial building, library, stadium, game park, hotel, super market, bank and etc.

Turnstile accessories:

● Turnstile Mechanism (semi-auto)
● Turnstile housing (304# Stainless steel at 1.5MM)
● Turnstile Control Board
● Turnstile Supply
● Turnstile Traffic Indicator(double direction)
● Turnstile Passage Status Lights
