0.3 - 3mm High Speed 60m/min steel coil Cut to Length Line
- T/T L/C D/P D/A
- 7 days
You May Like
-
3-12mm Slitting Line heavy duty type with high precision and high quality
-
High slitting precision 0.2 - 3mm slitting machine for carbon steel,GI steel,PPGI steel
-
High speed steel Slitting Line 1mm - 6mm for carbon / hot rolled steel
-
2 - 8mm Thickness Slitting Line recoiler production line
-
3mm - 16mm Slitting Line Mitsubishi PLC for carbon / galvanized steel
-
Edge Trimming High Precision Leveling Cut to Length Line
Product Details
| Brand Name | LX | Place of Origin | China | |
| Model Number | Cut to Length Line |
Product Description
Certification:ISO9001, CE

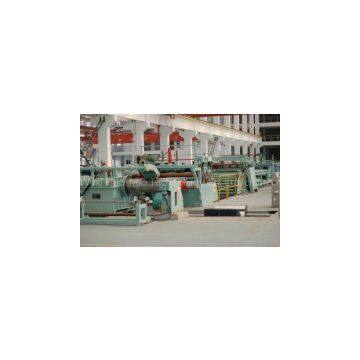

0.3 - 3mm High Speed 60m/min steel coil Cut to Length Line
Cut to Length Line
Uncoiler,?leveler,?cut-to?length,?stacker?production?line
The cut to length line is widely used in sheet metal processing industries. The machine is suitable for decoiling, leveling & cutting steel coils into required length plates. The production line has the feature of high precision, topping stabilization, and excellent performance. Using PLC system to control the whole line’s work, the operation is convenient and easy.
Work Flow
Coil car for material loading -- Decoiling --?sheet feeding device -- center adjusting unit
-- precision levelling -- cutting -- stacking
Detailed Data
|
Model |
T44QK- |
T44QK- |
T44QK- |
T44QK- |
|
Name |
2×1300 |
2×1600 |
3×1300 |
3×1600 |
|
Coil Thickness/mm |
0.3-2 |
0.3-2 |
0.3-3 |
0.3-3 |
|
Coil Width/mm |
800-1300 |
800-1600 |
800-1300 |
800-1600 |
|
Cutting Range/mm |
10.0-9999 |
10.0-9999 |
10.0-9999 |
10.0-9999 |
|
Tolerance/mm |
±0.3 |
±0.3 |
±0.5 |
±0.5 |
|
Leveling Precision |
1-2 |
1-2 |
1-2 |
1-2 |
|
Speed |
35pcs/min |
35pcs/min |
35pcs/min |
35pcs/min |
|
Capacity/ton |
10 |
10 |
20 |
20 |
Machine Component
Decoiler……................................................................................................1 set
Pinch roll & 5-roll leveler……..……………...................................................1 set
