Movable Motorized Pipe Welding Rotator PR 5T To Weld With High Efficient
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Industrial Power Tank Welding Rotator , Self-aligned Welding Rotator
-
Vertical Adjustable Welding Tank Rotator For Tank , Custom Built Fit-Up Rolls
-
Power Vessel Fit-up Tank Rotator Welding Turning Roll For Construction Of Tank
-
100T Automatic Type Head And Tail Stock Lifting Weld Positioner Euipment
-
10Ton Pipe Welding Positioner With Remote Control Welding Equipment
-
Lifting Type Rotary Welding Positioner 5Ton Welding Auxiliary Equipment
Product Details
| Brand Name | Yijie | Place of Origin | China | |
| Model Number | pipe |
Product Description
Certification:CE

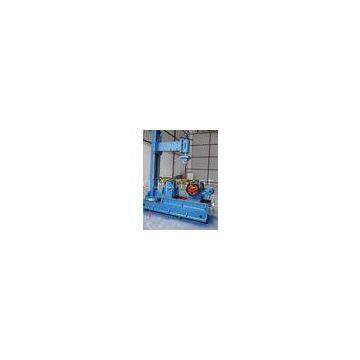

Movable Motorized Pipe Welding Rotator PR 5T To Weld With High Efficient
PR5 Movable Pipe Welding Rotator of Good Quality
Pipe rotator is specially designed and manufactured for purpose of meeting the requirements of enhancing productivity, increasing the extent of automatic, reducing welder’s working intensity and adapting to piping workshop prefabrication. The welding head will be relatively fixed, while the piping spool piece revolving at a specific rate, and the high efficient and low cost shielded welding or SAW process is adopted, so it has the features of easy-operation, reliable-performance and wide-application field.
We also can design the customize various types of the welding rotator in accordance with the customers requirement
Imported frequency conversion speed regulator, which features in wide regulation width, big starting power and high adjustable precision.
Product Application:
Used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber.
Product Advantage:
Pipe type, convenient
high quality
Reasonable price
good service
Specification:
|
Model
|
Pipe dia.(mm)
|
Max load(tons)
|
Motor power(kw)
|
Wheel speed(m/min)
|
Column elevating
|
Overall Dim(L*W*H)
|
|
PR0.5
|
50-350
|
0.5
|
0.37
|
0.1-1
|
Manual
|
1260*500*410
|
|
PR1
|
50-426
|
1
|
0.55
|
1260*500*410
|
||
|
PR5
|
50-630
|
5
|
1.3
|
Motorized
|
1900*1500*700
|
|
|
PR10
|
100-1000
|
10
|
1.6
|
2240*1510*800
|
Competitive Advantage:
1. All the bolt using 12.9 grade Bolt , not using 8.4 grade. Making the machine more stronger.
2. 20 % overweight design , could making the rotator focus more.
3. Double row wheels ,not only making the wheels stable, but also artifacts to increase friction.
4. All the parts using well-known brands in China or other countries . Quality is more reliable .
