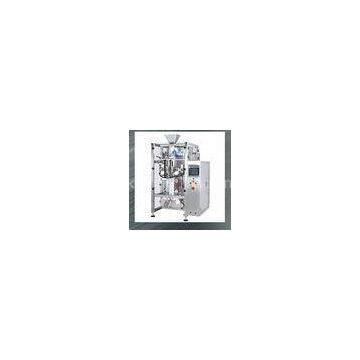

High Speed granule powder Continous Plastic Packaging Machine for pet food
Negotiable
1 (Min.Order)
- 0 per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Computer Sachet Film Plastic Bag Making Machine with PLC Controlled
-
Thickness T-Shirt Bag Shopping Plastic Bag Making Machine For Garbage Rolling Bags
-
Middle Sealing plastic bag manufacturing machine 50Hz 220V 1.1Kw
-
Craft Paper Bubble Mail Plastic Bag Making Machine With Side Sealing 20-120pcs/min
-
Disposable Long Glove Plastic Bag Making Machine Controlled By Servo Motor
-
Plastic Folding Plastic Bag Making Machine With PE PP Film Triangle Folder Part
Product Details
| Brand Name | Shunfeng | Place of Origin | China | |
| Model Number | 1000 |
Product Description
Continous High Speed Vertical Packing MachineSpecifications
The SFV-420 is an continous, high-speed vertical form-fill-seal machine capable of bag-making a maximum of 100 bag/min.?
?
?
?
Application:
?
Suitable for many kinds of measuring equipments, pet food, puffy food, shrimp roll, peanut, popcorn, cornmeal, seed, sugar and salt etc. which shape is roll, slice and granule Etc.
?
?
Features:
?
1).SIEMENS PLC control with stable reliable biaxial high accuracy output and color screen, bag-making, measuring, filling, printing, cutting, finished in one operation;
2).Separate circuit boxes for pneumatic and power control. Low noise, and more stable;
3).Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance; belt is resistant to be worn-out.
4).External film releasing mechanism: simpler and easier installation of packing film;
5).Only control touch screen to adjust bag deviation. Simple operation .
6).Close down type mechanism, defending powder into inside of machine.
Techinical parameter:
?
Model | SFV-420 |
Bag length | 50-300 mm(L) |
Bag width | 80-200 mm(W) |
Max width of roll film | 420 mm |
Packing speed | 5-100 bags/min |
Film thickness | 0.04-0.09mm |
Air consumption | 0.8 mpa |
Gas consumption | 0.3 m3/min |
Power voltage | 220V/50Hz 2.2KW |
Machine Dimension | L1490*W1020*H1324 mm |
Gross Weight | 600 Kg |
?
?
Optional devices:
1).Thermo transfer coder
Function: easy to change printing content and layout on the screen
2).Bag former
Function: making different bag width.
3).Gusset device
Function: making gusset bag
4).Euro hole
Function: making holding hole
5). Tear notch device
Function: easy to open bag
6).Flip device
Function: for stickly and Expanded Food, easy for droping down
7).PE sealing system
Function: special for PE foil packing
8).Air flushing system
8).Air flushing system
9).Nitrogen gas flushing
Weighing filling system:
?
1).Combination weighers
2).Combination scales
3).Cup fillers
4).Linear scales
