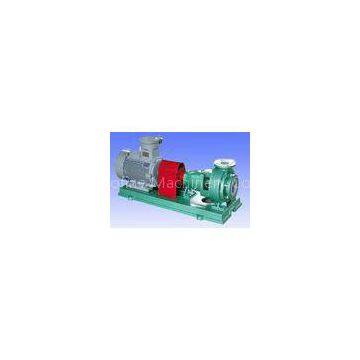

IHS Series Low Pressure Horizontal Centrifugal Pump For Chemical Industry

IHS Series Low Pressure Horizontal Centrifugal Pump For Chlor-Alkali Chemical Industry

The primary use of Sinofine fluoroplastic alloy centrifugal pump is to solve the chemical process of high temperature and strong corrosive chemical fluid transport problems, has been very successfully used in petrochemical, chemical fiber, fine chemicals, pesticides, chemicals, chlor-alkali chemical industry.

IHS temperature IHS fluorine plastic centrifugal pump based on fluorine plastic alloy R & D production. The pump energy efficient, in line with the eighth edition of API610 standards, maximum operating temperature of 200 ° C. Common parts of the pump, a high degree of standardization, reliability and life expectancy is high, suitable as a chemical process pump, transmission heat acids, alkalis, salts, organic solvents or other liquid chemical media.

IHS Fluorine Plastic Centrifugal Pump Features

IHS fluorine plastic centrifugal pump is a horizontal single-stage structure. The pump body go through the flexible coupling from the motor drive, using longer coupling, do not disassemble the motor, mechanical seal piping can be replaced. We use steel casing, lining material used tetrafluoroethylene (F4) and perfluoroalkyl vinyl ether copolymer ---- fusible Teflon (PFA).

Impeller and pump cover are used 40 # steel inserts outsourcing fusible Teflon (PFA) pressing.

Pump center bearing, bearing lubrication, bearing with cooling water jacket; Contact with the liquid part of the pump although the fluorine plastic, but the case is metal, it is sufficient to withstand the pump and piping to withstand the weight of mechanical shock.

IHS fluorine plastic centrifugal pump can work great for transmiting the fluid in high temperature conditions, any long-term concentrations of acids, alkalis, strong oxidizing agents, organic solvents, reducing agents and other corrosive media, and no damage.

IHS Fluorine Plastic Centrifugal Pump Model Significance

IHS50-32-160

IH - International standard chemical industry centrifugal pump

S – Single stage, single suction

50 - Inlet Diameter(mm)

32 - Outlet diameter(mm)

160 - Norminal diameter of the impeller(mm)

IHS Fluorine Plastic Centrifugal Pump Model Specification
