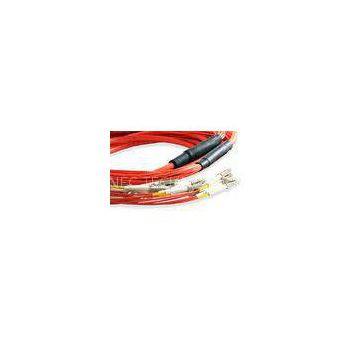

LC MM Multi-fiber Breakout Fiber Optic Patch Cord , Factory terminated Fiber Optic Patch Cable

Quick Detail:
1. LC to LC MM 50/125 or 62.5/125 breakout fiber optic patch cord
2. Built on 4-144 fiber trunk cable
3. LC, SC, FC,ST or MTRJ connectors factory pre-terminated
4. 2.0mm fanout, with breakout kit
5. LC clippers pre-assembled as per customer request
6. Minimum 300mm fan out length

LC MM Multi Fiber Breakout Fiber Optic Patch Cord, Factory terminated Fiber Optic Patch Cable
?

Description:
A fiber optic trunk cable is a convenient and economical alternative to running multiple fiber optic jumpers or individual fiber optic cables. It can have from 4 to 144 fibers per trunk and distribute multiple Data channels.

FOCONEC offers kinds of factory pre-terminated trunk fiber optic patch cables with custom connector configurations, breakouts, labels, and jacket material types.

Trunk patch cables are also important part of Plug & Play cabling system, features high-density, factory terminated, factory tested.?This fiber connectivity solution allows connection from central patch locations to work areas quick, simple and cost effective, without need for unnecessary splicing or terminations in the field.

Applications:
Used as interconnection or cross-connection in
1. Data center cabling
2. Backbone cabling
2. Fiber To The Home(FTTH)
3. Various kinds of testing and self-control system
?

Features:

1. Factory pre-terminated, eliminates the need for field terminations or splices, save on-site labor cost

2. Multi-fiber solutions from 4 fiber up to 144 fibers regularly

3. Single-mode 9/125, Multimode 50/125 or 62.5/125, Multimode 10Gig fiber cable for option

4. Full Range of SC, LC, ST, FC, MTRJ, MU, DIN, D4 connectors available

5. PC (Physical Contact), UPC (Ultra Physical Contact) or APC (Angled Physical Contact) connector end-face polish available

6. 100% factory tested with complete test results

7. Customized length, staggering, connector type, fan-out style, and labeling

8. Pulling eye available for connecter protection, on-site easy and quick installation
?

Specifications:

Color Codes:

Competitive Advantage:
1. Work team with over 10 years experience of fiber optic patch cord producing
2. UL and RoSH certified cables and connectors used
3. Quick delivery time to support customer to win more business
4. Custom fan-out length, diameter and labeli
