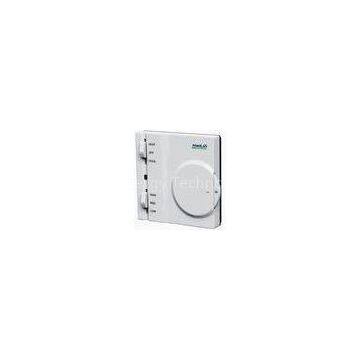

2 Pipe / 4 Pipe Manual Fan Coil Thermostat , Room Temperature Thermostat

2 Pipe / 4 Pipe Manual Fan Coil Thermostat , Room Temperature Thermostat

Quick?Detail:

24/110/220Vac

Surface?mounting

On/off?control

2pipe?/?4pipe

Description:

●?Elegant?shape?with?high?reliability?
●?To?control?fan?coil,?valve?and?damper?etc.
●?Manual?switch?to?select?work?state?and?knob?to?set?the?temperature
●Thermostats?can?be?directly?mounted?on?the?wall?or?standard?wiring?box

●?HEAT/COOL/OFF?selected?by?switch
●?Adjust?setpoint?by?knob
●?Speed?selected?by?switch
●?LED?indicates?the?working?state

Applications:

HL109?series?thermostats?are?designed?to?control?the?room?temperature?in?industrial,?commercial?and

?residential?Environment?via?controlling?the?fan?coil?units?(with?or?without?motorized?valve),?damper,?diffuser

?etc.?which?uses?NTC?to?detect?the?room?temperature?and?compare?it?with?the?set-point?so?as?to?automatically

?keep?the?room?temperature?stable.

Part? No.

Specifications

Power Voltage: 220Vac(or any other volt.) ±10%, 50/60Hz
Setpoint Range:10~30℃
Setting Unit:1℃/step
Accuracy:±1℃
Indication:
LED indicate the working state:
RED shows the power is on;
ORANGE shows under heating or cooling.
System Adjust:
3-position slide switch for system of HEAT,OFF, COOL
3-position slide switch for fan speed of HIGH, MED and LOW
Mode Setting: HEAT,COOL
Fan Speed Selection: High, Medium, Low fan speed control
Cycling Fan Control: Fan cycled running with thermostat
Control Performance: ON/OFF control
Thermostat Output:
SPST relay for 2-pipe and 4-pipe configuration
Electrical Rating:
0.8A run,5A inrush
Temperature Sensor: NTC Thermistor 10K
Enclosure: Fire retardant PC ABS
Minimum Operational Life: Thermostat contacts: 100,000 cycles
Dimensions:86×86×24mm (W×H×D)
Hole Pitch:?? 60 mm? ?
Environmental requirements:
Operating temperature range 0 ~ 40℃
Humidity range 5 ~ 95 %RH (non-condensing)
Mounting: Mounts directly onto wall or wall-box(Mounting screws supplied)
Wiring: Screw-in terminals, each terminal capable of accepting ;16 AWG, 18 AWG, 1.25 mm2 or 0.75 mm2 wires
