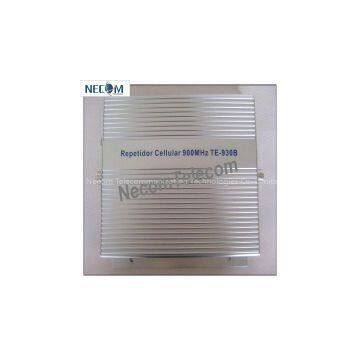

GSM900Mhz 1W FullBand Pico-RepeaterModel:TE-930B

GSM900Mhz 1W FullBand Pico-RepeaterModel:TE-930B

Technical Features:

1)High system gains.

2)Full duplex and double-end design, externalpower supply, and convenient installation.

3)ALC technology with auto-steady function adopted.

4)Provide power indication and uplink and downlinkindications.

5)With the amplified linear power, theintermodulation and spuriousness are suppressed effectively.

6)The reliability conforms to GB6993-86 standards.

7)The electromagnetic compatibility conforms toETS300 609-4 standards.

Frequency range: Uplink:890-915MHz, Downlink :935-960MHz;

Gain(dB)Uplink: Gp>=70;

Gain(dB) Downlink: Gp>=75;

Gainadjustable: MGC>=30dB;

Outputpower: >=30dBm;

Passband ripple:<=4dB;

Guardband rejection: (BW-60dB)<=42MHz ,(BW-70dB)<=45MHz;

I/Oimpedance:50/N Connector;

I/Oreturn loss:<=-10dB;

Noisefigure:<=-8dB:

Intermodulationattenuation(Po=13dBm):<=-40dBc;

Transmission:<=0.5s;

Ambient:-10-50;

Powersupply:AC110-240V±10%,45-55Hz;

Size:148mm×106mm×33mm;

Reliability:Tothe GB6993-86 standard;

Electromagnetic:Tothe ETS300 694-4 standard;

Function:a) Power supply LED denote b) Export power LED denote
