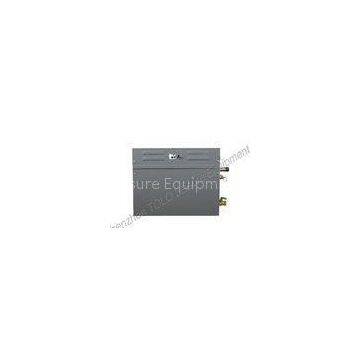

400V Electric Sauna Steam Generator Cuboid 9kw With Three Phase

Brand Name	KSA		Place of Origin	China
Model Number	KSA-N90

Delivery Time:1-3 workdays
Certification:CE
400V Electric Sauna Steam Generator Cuboid 9kw with three phase

Quick Detail:

Type: Wet Steam Sauna control panel: digital and optional Power output: 9.0kw voltage: 380V~400V Current: 13.6A Main Material: stainless steel tank, galvanizing and powder coated shell Color: grey or white phase: 3 Shape: Cuboid or round Size: 445*182*313mm Room volume(cubic meter):8~11 Usage: steam sauna room working time: 1~60 minutes or long time Heating: heat elements Power source: Electric Time Setting: 1-60mins Temperature range to control: 95 F degree~131 F degree Temperature range to show on control panel: 43 F degree ~140 F degree

KSA-N90 has over-pressure protection and auto water feeding system. It is an Economic model.

There is no pause during the flesh cool water injects. The KSA-N steam comes fast in 1 minute. It is with simple control system to handle easily, and with less problems than complex functions model. It is best choice for residential use. For good maintenance of the steam room please open the door for dry after steam bath.

It is designed for residential.

400V Electric Sauna Steam Generator Cuboid with single phase

Description:

The Economic steam generator is specialized for residential bath room or small business which only requires simple functions. You could set temperature to the range of 35-55 C(95-131 F), and working time to 1~60 minutes or \"CH\" non-stop mode. This KSA-N steam generator allows you to customize your showering experience and enjoy the purifying benefits of steam at home. It is easy-to-install, digital control panel with adjustable temperature and session settings. KSA-N series steam generator also is with stainless steel water tank, the galvanizing and powder coated shell is anti-corrosive and durable.

KSA-N90 steam generator kit: 1pcs 9.0kw steam generator

?????????????????????????????????????????????? ????1pcs steam head

??????????????????????????????????????????????????1pcs R30 control or TM60

??????????????????????????????????????????? ?????1pcs temperature sensor

??????????????????????????? ??????????????????? ?1pcs control wire

??????????????????????????? ????????????????????? 1pcs safe valve

Optional accessories: drain pan, aroma pump, aroma essential oil, rollover shower stool and shower , bath mat, Led colorful lights, lamp, steam room door, Hygrometer, thermometer,

Applications:

For 8~11m3 residential and small business steam baths

Specifications:

Control panel with Digital display Control panel used the advanced inducing technology Controls sauna temperature 35 degree to 55 degrees Controls sauna time 1 minute to 60 minutes or long time Automatically shuts down when water level is too low Temperature high limit switch Waterproof grade: IPX5 Auto protection: boil dry protect, pressure balancing valve, Auto function: auto water inlet ,auto power off

Model	Power?kW	Power supply (50/60Hz)	Power wire?? (copper)?N*mm2	Dimensions??cm	Packing size??cm	Gross weight ?kg
KSA-N9C	9.0	220-240V~	40.9	3*10.0	44.5*18.2*31.3	53.5*21*41	11
380-415V3N~	13.6	5*2.5

KSA-N Economic steam generator has 4.0kw, 5.0kw, 6.0kw, 7.0kw, 8.0kw and 9.0kw for your choice. Normally the Economic steam generator is less than 9KW, 220-240V single phase and equipped with manual drain valve. Customization such as larger power size (more than 6KW), 380-415V three phases power supply or auto drain function could be realized on customers\' requirement. Auto-drain also is available for your requirement.

KSA-N90C

Competitive Advantage:
