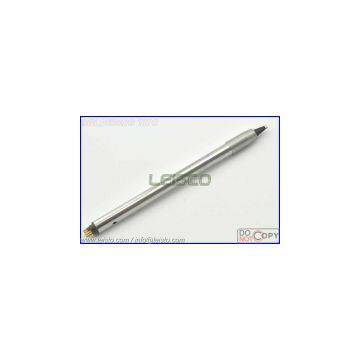

Apollo Seiko DCN-16DV2 Soldering tip cartridge DCS series tips Apollo tips

Apollo Soldering tips DCN series:

Leisto's production Apollo Seiko compatible soldering tips have good performance such as low temperature difference (plus-minus 10 degree),smooth solder wetting performance.The  great base copper & precise plating technology improves the thermal conductivity and reduce the temperature recovery time.The soldering tip can make the robots get the most out of automated soldering:working stable,low faulty soldering joints.

Specifications of Apollo DCN-16DV2 Soldering Tip:

• two side tinning

• DC48V, Total Length: 101mm

• Diameter: 6.4mm

• Tip width: a: 4mm, b: 1.6mm

• Tip thickness (c): 0.6mm

• Tin area, two side (d): 1.5mm

Advantages of Leisto Soldering Tip:

1. - made with pure oxygen-free copper

2. - long time electroplating makes the plating layer more denser, the life time is longer than other tips

3. - short lead time for standard robot tips

4. - the cost is much lower than original tips

5. - Custom made available

6. - offer sample for testing

Tip Cleaning Notes:

1. If the sponge cleaner is utilized, air-blow cleaning is normally not required.

2. Some applications require air-blow & sponge tip cleaning (depending upon tip type)

3. Standard cleaning duration is 0.5 second

4. The iron tip does not need to be extended if not required

5. The air-blow cup is not included with the standard Luna system
