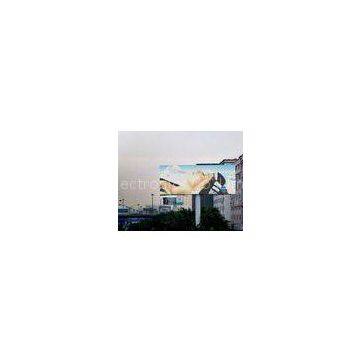

HD P10 Outdoor Full Color LED Display Board , Stadium Led Video Screen 9000 Nits

ixel configuration

DIP346 1R1G1B

LEDs configuration

Red:wave length: 625~630nm;1100-1300mcd
Green:wave length: 525~530nm;1900-2400mcd
Blue:wave length: 470~475nm;500-700mcd

Pixel pitch(mm)

10

Pixel density(dots/sqm)

10000

Calibrated brightness(cd/sqm,nit)

9000 nits(adjustable)

Calibrated brightness proportion ratio

R:G:B = 3:6:1

Contrast ratio

4,500:1

Brightness adjustment(dimming)

100 grade auto/manual-adjustment

View angle(degree)(50% brightness)

V60/H120

Color capability

4.4 trillion

Refresh rate(Hz)

>1200 Hz

Frame frequency(Hz)

>60 Hz

Interface port

DVI interface(DVI connector)

Input signal

VGA, Video, AVI, MOV, MPG, DAT, VOB etc.

Protection grade

IP65 front side/IP43 backside

LED Drive

Constant-current

Lifetime(hours)(50% brightness)

100,000 hours

Signal transmission direction

Horizontal

Operating temperature(Celsius degree)

-30 ~ 65

Storage temperature(Celsius degree)

-35 ~70

Operation humidity(RH)

0-95%

Operation humidity(RH)

0-99%

Servicing

Front and back serving optional

Control mode

Synchronous & asynchronous available

Communication options

Wire Ethernet, Fiber Ethernet,RF wireless,GPRS

Power

120/240 V? AC single phase(50-60Hz)

Maximum power consumption(W/sqm)

1000

Average power consumption(W/sqm)

500

Screen operation mode(scan/static)

1/4

Module configuration(Pixels quantities of the module)

Length

16

Height

16

Module dimensions(mm)

Length

160

H
